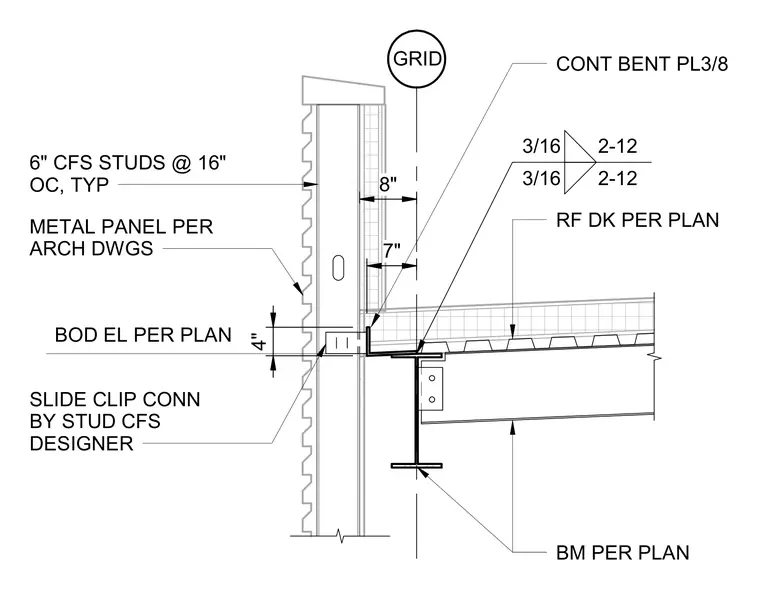

Six-inch cold-formed steel studs spaced at sixteen inches on center support exterior metal panels per architectural drawings. A continuous three-eighths-inch bent plate connects the roof deck and structural steel beam per plan, welded with three-sixteenths-inch fillet welds spaced at two to twelve inches. A slide clip connection designed by the cold-formed steel designer ties the wall framing to the structure while accommodating vertical movement.
8" 3/16 2-12 3/16 2-12 7" BOD EL PER PLAN 151' - 1" 6" CFS STUDS @ 16" OC, TYP METAL PANEL PER ARCH DWGS BM PER PLAN RF DK PER PLAN CONT BENT PL3/8 SLIDE CLIP CONN BY STUD CFS DESIGNER GRID 4"
