Two adjacent concrete panels are tied together across a one-half-inch joint with a half-inch by twelve-inch by one-foot-eight-inch steel plate. The connection is secured on each side by two three-quarter-inch diameter Hiliti Kwik Bolt TZ2 expansion anchors with five-and-a-half-inch embedment.

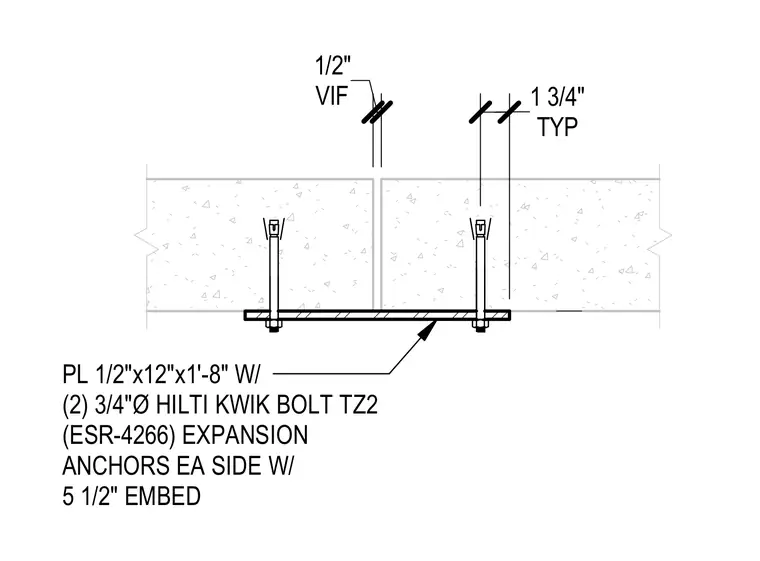

PL 1/2"x12"x1'-8" W/ (2) 3/4"Ø HILTI KWIK BOLT TZ2 (ESR-4266) EXPANSION ANCHORS EA SIDE W/ 5 1/2" EMBED VIF 1/2" TYP 1 3/4"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
