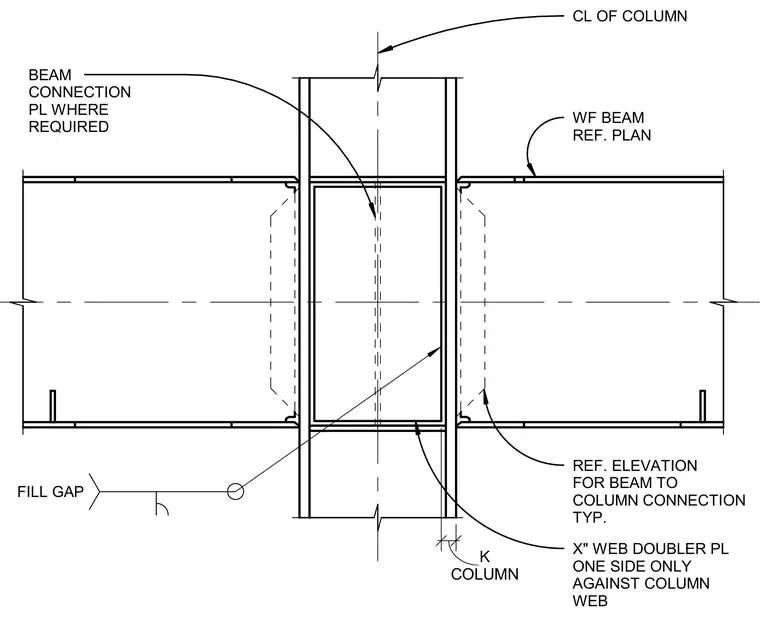

A wide-flange beam connects to a wide-flange column centered on the column line. A web doubler plate is welded to one side of the column web where required. Any gap is filled and welded according to typical structural details. Additional beam connection plates and reference elevations are provided per plan.
X" WEB DOUBLER PL ONE SIDE ONLY AGAINST COLUMN WEB CL OF COLUMN BEAM CONNECTION PL WHERE REQUIRED COLUMN K FILL GAP WF BEAM REF. PLAN REF. ELEVATION FOR BEAM TO COLUMN CONNECTION TYP.
