A heavy structural steel column base connection uses a 1 1/2-inch thick Grade 50 base plate anchored by eight 1-inch diameter high-strength anchor rods arranged around the column profile. Three-quarter by six-inch Grade 50 stiffener plates are welded to the base plate and column flanges and web using three-eighths-inch fillet welds. Three-by-three-by-one-half-inch washer plates with standard-size holes are positioned at each anchor rod and secured with one-quarter-inch fillet welds to the base plate.

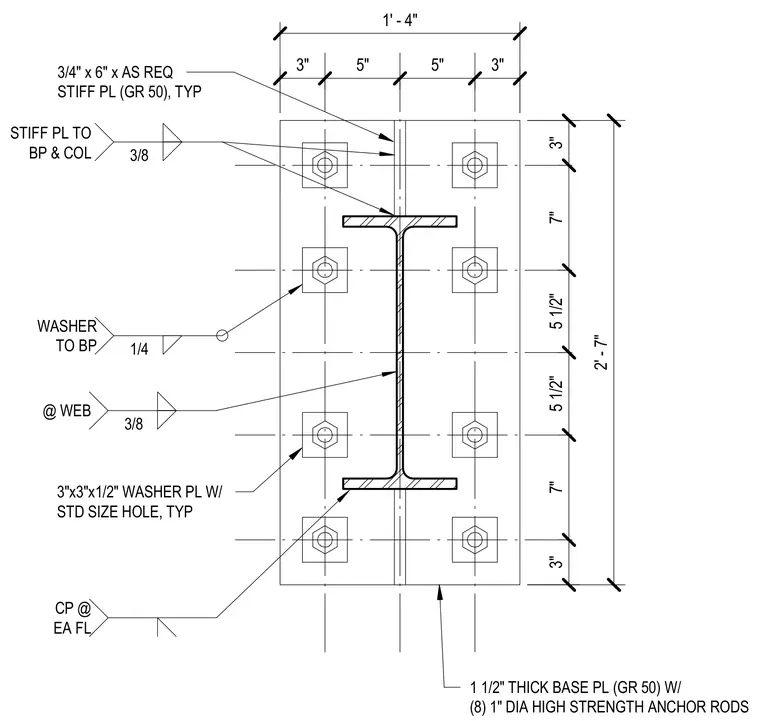

1' - 4" 3" 5" 5" 3" 2' - 7" 3" 7" 5 1/2" 5 1/2" 7" 3" 3/8 @ WEB CP @ EA FL 3"x3"x1/2" WASHER PL W/ STD SIZE HOLE, TYP 1/4 WASHER TO BP 3/4" x 6" x AS REQ STIFF PL (GR 50), TYP 3/8 STIFF PL TO BP & COL 1 1/2" THICK BASE PL (GR 50) W/ (8) 1" DIA HIGH STRENGTH ANCHOR RODS
