A buckling-restrained braced frame column base plate connection is anchored to an embed plate with welded rebar. The steel column is welded to a base plate using complete joint penetration welds on the flanges and five-sixteenth-inch fillet welds on the web, executed per D1.8-DCW seismic requirements. Square grade fifty washer plates measuring one by five inches with standard holes are provided typically at the anchor locations per AISC recommendations. A large embed plate measuring one by twenty-seven inches by two feet six inches is centered on the column and anchored with thirty-five number six welded rebar spaced at four inches each way below the plate. A two-inch diameter grout hole is located typically through the base plate. A gusset plate for the buckling-restrained brace extends from the column, detailed per the brace manufacturer.

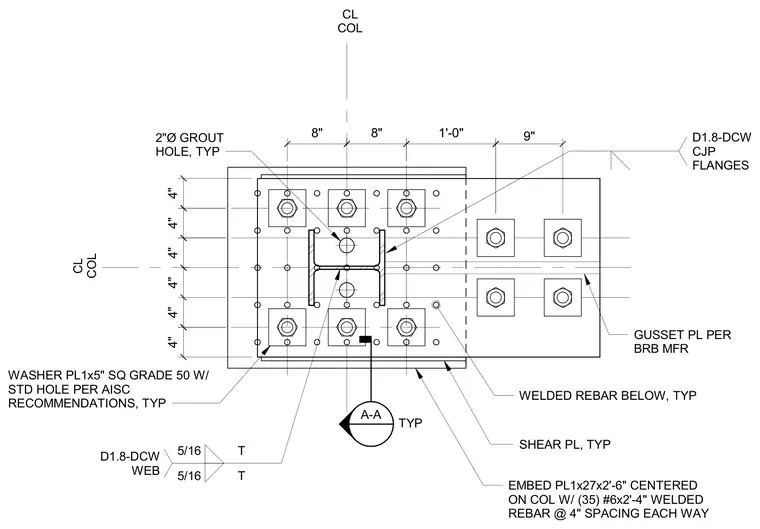

A-A 5/16 T 5/16 T D1.8-DCW WEB D1.8-DCW CJP FLANGES WASHER PL1x5" SQ GRADE 50 W/ STD HOLE PER AISC RECOMMENDATIONS, TYP EMBED PL1x27x2'-6" CENTERED ON COL W/ (35) #6x2'-4" WELDED REBAR @ 4" SPACING EACH WAY CL COL WELDED REBAR BELOW, TYP 2"Ø GROUT HOLE, TYP CL COL GUSSET PL PER BRB MFR TYP 8" 8" 1'-0" 9" SHEAR PL, TYP 4" 4" 4" 4" 4" 4"
