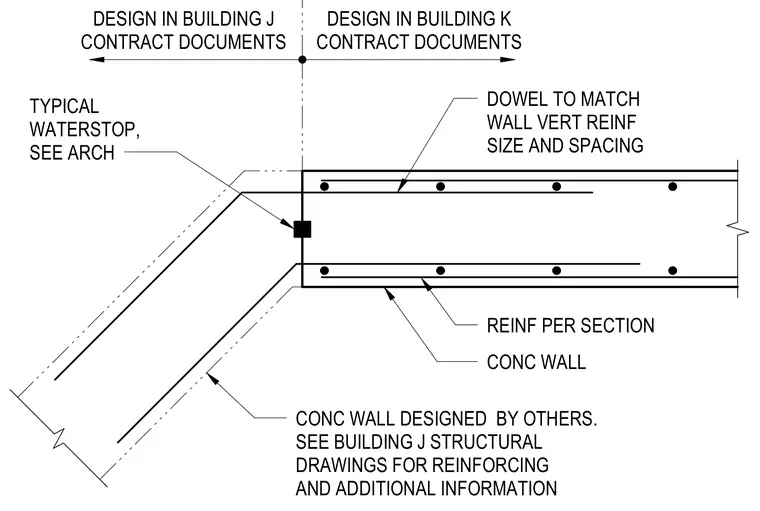

Concrete walls meet at an angled transition joint separating two different building scopes. Dowel bars match the vertical reinforcement size and spacing of the connecting wall. A typical waterstop is positioned at the joint per architectural drawings. Reinforcement details follow the main wall sections.
CONC WALL CONC WALL DESIGNED BY OTHERS. SEE BUILDING J STRUCTURAL DRAWINGS FOR REINFORCING AND ADDITIONAL INFORMATION DESIGN IN BUILDING K CONTRACT DOCUMENTS DESIGN IN BUILDING J CONTRACT DOCUMENTS TYPICAL WATERSTOP, SEE ARCH REINF PER SECTION DOWEL TO MATCH WALL VERT REINF SIZE AND SPACING
