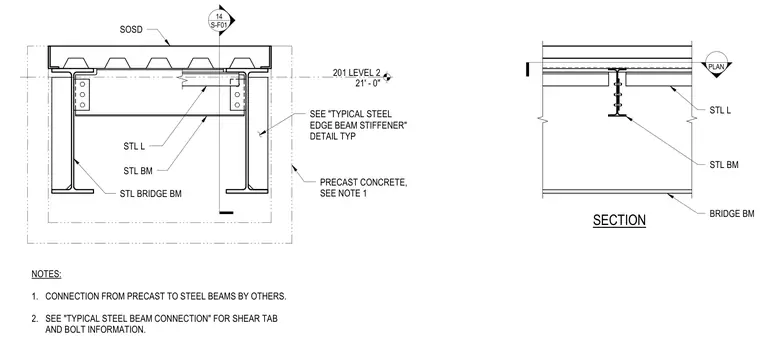

A horizontal bracing connection at a bridge steel beam supports a level twenty-one feet and zero inches above datum. Steel angle bracing connects to the structural steel bridge beam using bolted shear connections and steel angles. Precast concrete elements align adjacent to the steel framing with connections provided by others. A section view shows the vertical and horizontal alignment of the steel members and concrete deck.
PLAN 201 LEVEL 2 21' - 0" SOSD SEE "TYPICAL STEEL EDGE BEAM STIFFENER" DETAIL TYP PRECAST CONCRETE, SEE NOTE 1 STL L STL BM STL BRIDGE BM NOTES: 1. CONNECTION FROM PRECAST TO STEEL BEAMS BY OTHERS. 2. SEE "TYPICAL STEEL BEAM CONNECTION" FOR SHEAR TAB AND BOLT INFORMATION. 14 S-F01 SECTION STL L STL BM BRIDGE BM
