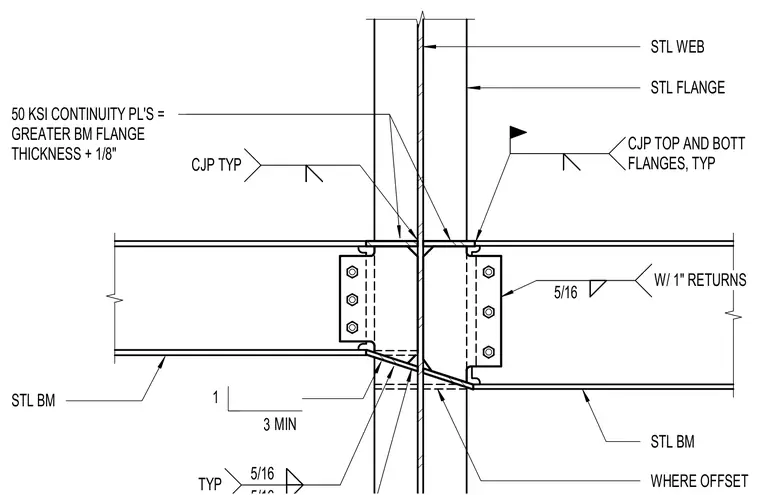

Continuity plates are installed between steel beam flanges at a vertical offset connection across a steel column web and flange. The fifty KSI continuity plates have a thickness equal to the greater beam flange thickness plus one-eighth inch. Top and bottom beam flanges connect to the plates using complete joint penetration welds typically with one-inch returns. Fillet welds of five-sixteenth inch size are applied to the shear tabs with three inches minimum clearance where offset.
STL BM 50 KSI CONTINUITY PL'S = GREATER BM FLANGE THICKNESS + 1/8" STL BM STL FLANGE STL WEB 1 3 MIN WHERE OFFSET CJP TYP 5/16 CJP TOP AND BOTT FLANGES, TYP 5/16 W/ 1" RETURNS
