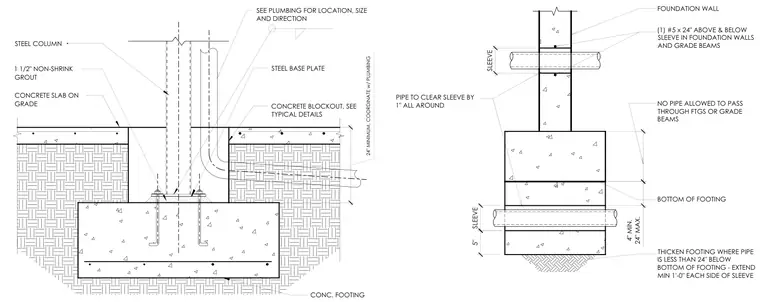

A steel column bears on a steel base plate set over one and one-half inches of non-shrink grout atop a concrete footing, anchored with bent reinforcing bars. A concrete slab on grade interfaces with the footing while adjacent downspout or plumbing lines route through a concrete blockout. Separate elevations show pipe sleeves passing through foundation walls with one number five by twenty-four-inch reinforcing bar placed above and below each sleeve. Pipes maintain a one-inch clearance all around the sleeve and are restricted from passing directly through footings or grade beams without thickening the footing a minimum of one foot on each side.
PIPE TO CLEAR SLEEVE BY 1" ALL AROUND FOUNDATION WALL (1) #5 x 24" ABOVE & BELOW SLEEVE IN FOUNDATION WALLS AND GRADE BEAMS NO PIPE ALLOWED TO PASS THROUGH FTGS OR GRADE BEAMS BOTTOM OF FOOTING THICKEN FOOTING WHERE PIPE IS LESS THAN 24" BELOW BOTTOM OF FOOTING - EXTEND MIN 1'-0" EACH SIDE OF SLEEVE CONCRETE BLOCKOUT, SEE TYPICAL DETAILS STEEL BASE PLATE STEEL COLUMN 1 1/2" NON-SHRINK GROUT CONC. FOOTING SEE PLUMBING FOR LOCATION, SIZE AND DIRECTION CONCRETE SLAB ON GRADE 24" MINIMUM, COORDINATE w/ PLUMBING 5" SLEEVE 4" MIN. 24" MAX. SLEEVE
