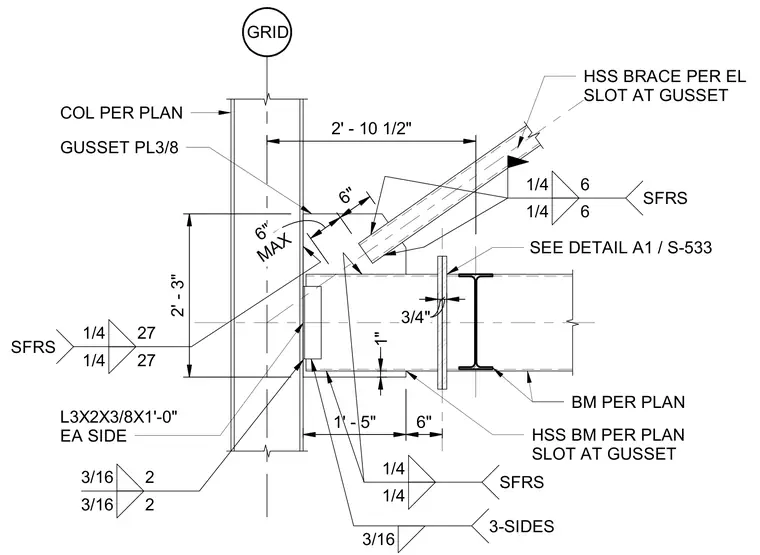

A hollow structural section brace connects to a structural steel column through a three-eighths-inch thick gusset plate. An intersecting hollow structural section beam frames into the assembly with a three-quarter-inch clearance and is supported by connection angles measuring L3x2x3/8 by one foot zero inches on each side. Fillet welds of quarter-inch and three-sixteenth-inch sizes secure the plates and angles. Spray-applied fire-resistant material is specified across the steel components.
1' - 5" 6" 2' - 10 1/2" 6" MAX 6" 2' - 3" GRID 1" HSS BRACE PER EL SLOT AT GUSSET 1/4 6 1/4 6 SFRS GUSSET PL3/8 COL PER PLAN BM PER PLAN HSS BM PER PLAN SLOT AT GUSSET CONN L3X2X3/8X1'-0" EA SIDE 1/4 27 1/4 27 SFRS 1/4 1/4 SFRS SEE DETAIL A1 / S-533 3/4" 3/4" 3/16 3-SIDES 3/16 2 3/16 2
