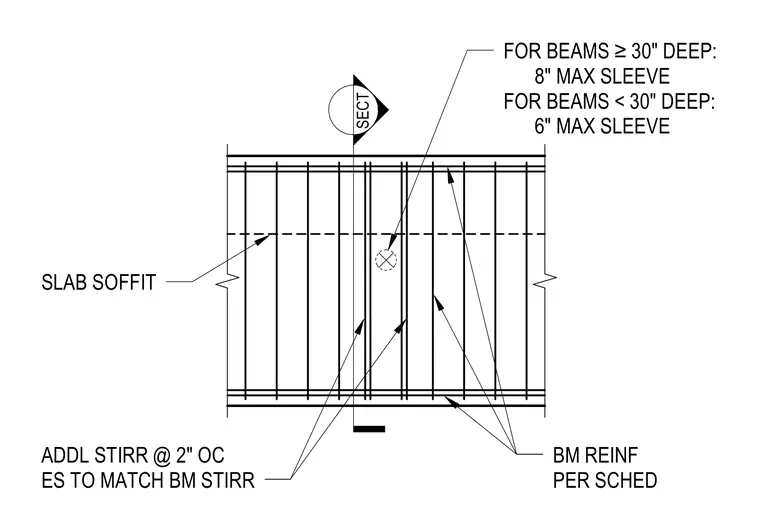

Concrete beam penetration sleeve with maximum sizing limits and additional stirrup reinforcement. Beams thirty inches deep or greater permit an eight-inch maximum sleeve diameter, while beams under thirty inches restrict the sleeve to a six-inch maximum. Main beam reinforcement follows the structural schedule. Additional stirrups spaced at two inches on center match the size of the beam stirrups.
SECT SLAB SOFFIT FOR BEAMS ≥30" DEEP: 8" MAX SLEEVE FOR BEAMS < 30" DEEP: 6" MAX SLEEVE BM REINF PER SCHED ADDL STIRR @ 2" OC ES TO MATCH BM STIRR
