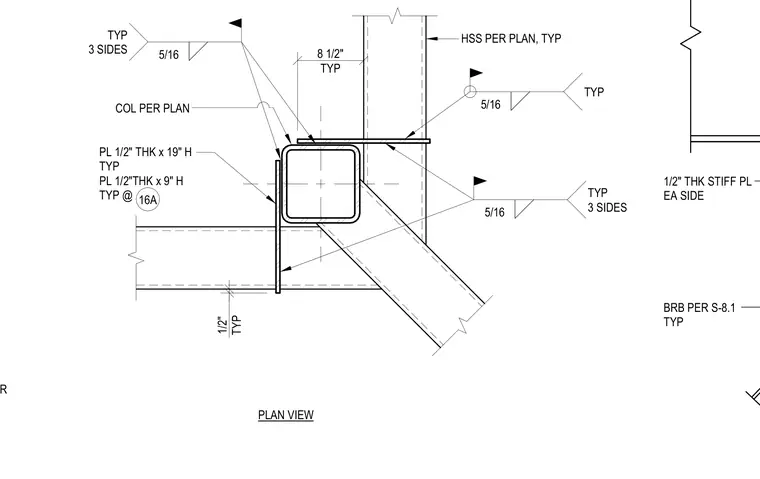

A buckling-restrained brace connects to a hollow structural section column sized per plan. A half-inch thick plate nineteen inches high and a half-inch thick plate nine inches high attach to the column with five-sixteenth inch fillet welds along three sides typically. Half-inch thick stiffener plates are provided on each side of the connection. The buckling-restrained brace is detailed per sheet S-8.1.
BRB PER S-8.1 TYP 1/2" THK STIFF PL EA SIDE TYP 8 1/2" TYP 1/2" TYP PLAN VIEW HSS PER PLAN, TYP COL PER PLAN PL 1/2" THK x 19" H TYP PL 1/2"THK x 9" H TYP @ TYP 3 SIDES TYP 3 SIDES 5/16 5/16 5/16 16A CONC COL & REINF PER
