Composite Beam Framing and Shear Connection at Steel Column

Materials

Concrete Steel Metal (misc.)Composite

Elements

Columns Beams Floors / Slabs Decks

Connections

Shear Stud / Composite

About this detail

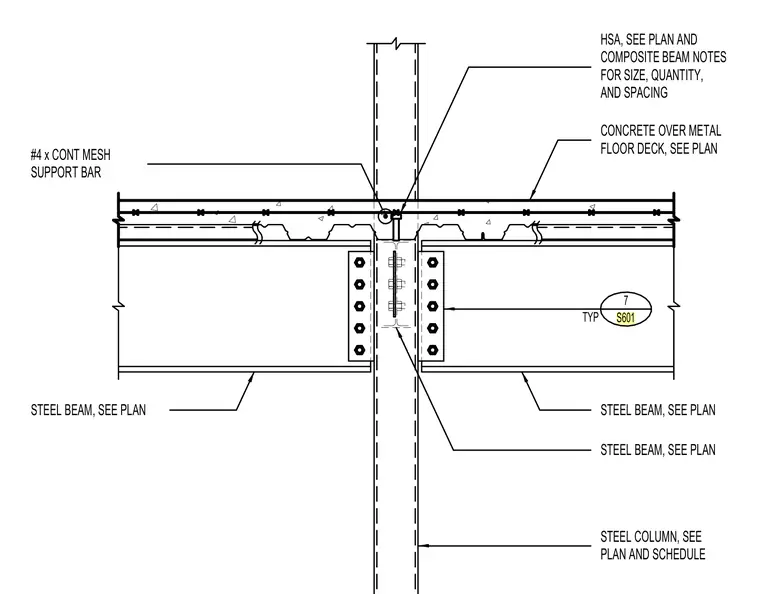

Steel beams frame into opposite flanges of a steel column using bolted shear tab connections, with sizing specified per plan and schedule. A concrete slab poured over a metal floor deck bears over the top flange of the beams. Shear studs welded through the deck into the top flange provide composite action, supplemented by a continuous number four support bar holding welded wire mesh.
