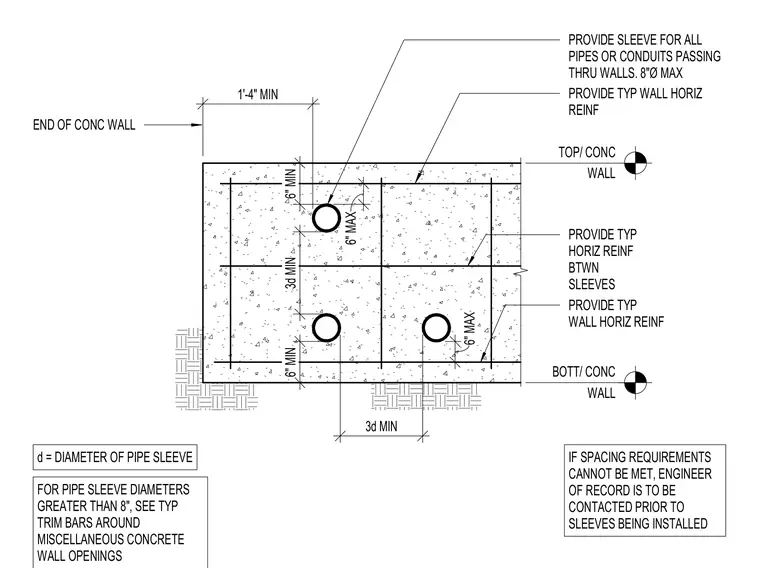

Concrete wall penetrations require pipe sleeves up to eight inches in diameter with typical horizontal reinforcement placed between sleeves and along the wall boundaries. Minimum spacing and edge distances are maintained at three times the sleeve diameter or specified minimum dimensions. Typical horizontal reinforcement continues around the sleeves, while larger sleeves require specific trim bars per standard details. The engineer of record must be contacted prior to installation if the minimum spacing requirements cannot be met.
6" MIN 1'-4" MIN 3d MIN 3d MIN 6" MIN END OF CONC WALL 6" MAX 6" MAX PROVIDE TYP WALL HORIZ REINF PROVIDE TYP HORIZ REINF BTWN SLEEVES PROVIDE SLEEVE FOR ALL PIPES OR CONDUITS PASSING THRU WALLS. 8"Ø MAX PROVIDE TYP WALL HORIZ REINF d = DIAMETER OF PIPE SLEEVE FOR PIPE SLEEVE DIAMETERS GREATER THAN 8", SEE TYP TRIM BARS AROUND MISCELLANEOUS CONCRETE WALL OPENINGS IF SPACING REQUIREMENTS CANNOT BE MET, ENGINEER OF RECORD IS TO BE CONTACTED PRIOR TO SLEEVES BEING INSTALLED BOTT/ CONC WALL TOP/ CONC WALL
