Structural · S-AFKT5

Conditions At Pipe Perpendicular To Footing

Materials

Elements

About this detail

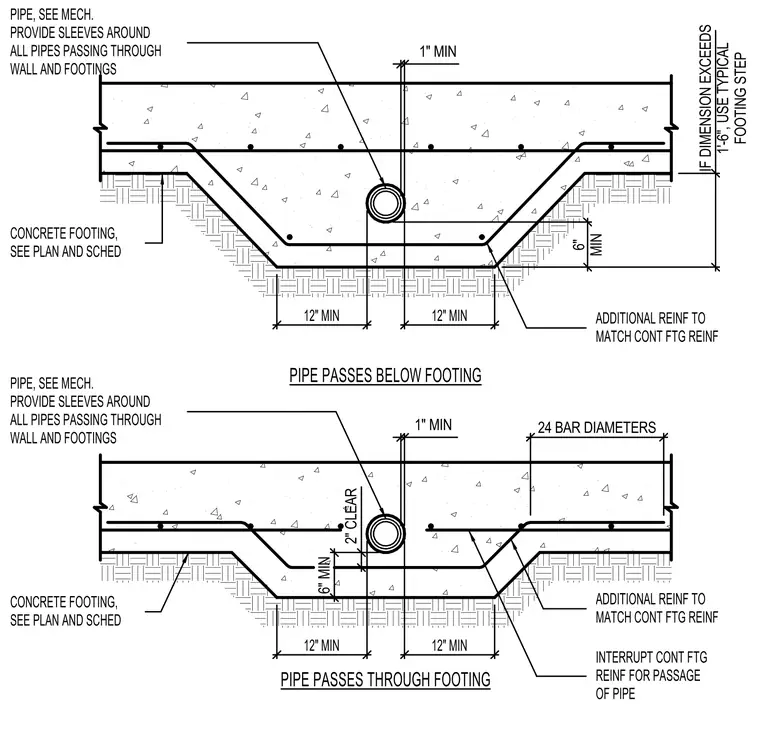

Mechanical piping passes through or below a concrete footing. Sleeves are provided around all pipes passing through walls and footings, maintaining a one-inch minimum clearance. Continuous footing reinforcement is interrupted for the passage of the pipe when routed through the footing, with additional reinforcement added to match the continuous footing reinforcement. Where the dimension exceeds one foot six inches, a typical footing step is utilized, requiring a six-inch minimum clearance and twenty-four bar diameters lap length.
