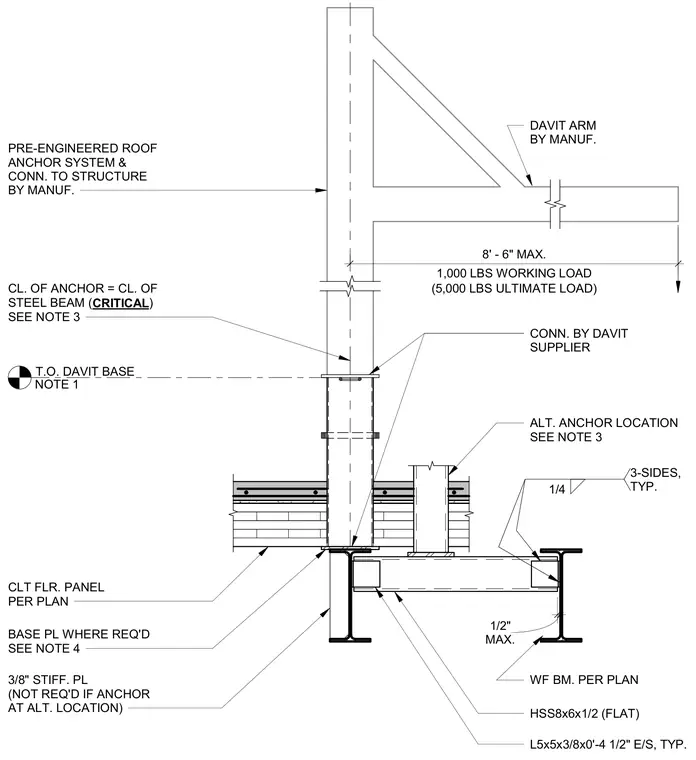

A pre-engineered roof anchor system and hollow structural section davit base connect to a cross-laminated timber floor panel and a wide flange steel beam. The assembly features an HSS8x6x1/2 structural section supporting a manufacturer-provided davit arm with an eight-foot six-inch maximum reach, designed for a one-thousand-pound working load and a five-thousand-pound ultimate load. The davit base aligns with the centerline of the steel beam and rests on a base plate where required. A three-eighths-inch stiffener plate is included but omitted if an alternate anchor location is utilized. Angles measuring 5x5x3/8 by zero feet four and one-half inches long weld to each side with typical quarter-inch fillet welds on three sides.
T.O. DAVIT BASE NOTE 1 1,000 LBS WORKING LOAD 8' - 6" MAX. DAVIT ARM BY MANUF. (5,000 LBS ULTIMATE LOAD) ALT. ANCHOR LOCATION SEE NOTE 3 MAX. 1/2" 3-SIDES, TYP. 1/4 WF BM. PER PLAN L5x5x3/8x0'-4 1/2" E/S, TYP. HSS8x6x1/2 (FLAT) 3/8" STIFF. PL (NOT REQ'D IF ANCHOR AT ALT. LOCATION) BASE PL WHERE REQ'D SEE NOTE 4 CL. OF ANCHOR = CL. OF STEEL BEAM ( CRITICAL ) SEE NOTE 3 PRE-ENGINEERED ROOF ANCHOR SYSTEM & CONN. TO STRUCTURE BY MANUF. CLT FLR. PANEL PER PLAN CONN. BY DAVIT SUPPLIER
