A structural steel column specified per elevation connects to a four-inch thick A572 Grade 50 base plate. Four two-and-a-half-inch diameter anchor rods secure the base plate over a one-inch layer of non-shrink grout. Four three-inch diameter A572 Grade 50 shear lugs weld to the base plate and extend into a blockout in the concrete slab, which is subsequently filled with non-shrink grout. A backing bar is removed after the weld is completed, and a thirteen-sixteenths inch maximum grout hole is provided at the contractor's option.

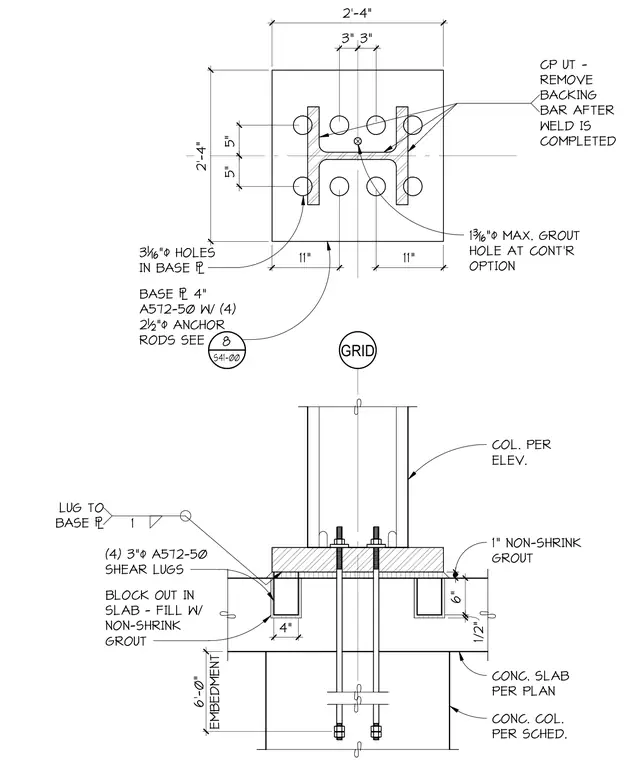

4" 6" 1/2" 1" 1" NON-SHRINK GROUT CONC. SLAB PER PLAN 1 '-1 " 6'-0" EMBEDMENT BLOCK OUT IN SLAB - FILL W/ NON-SHRINK GROUT (4) 3"1 A572-50 SHEAR LUGS 1 LUG TO BASE " COL. PER ELEV. CONC. COL. PER SCHED. GRID 2'-4" 5" 2'-4" 32"1 HOLES IN BASE " 5" 3" 3" BASE " 4" A572-50 W/ (4) 2½"1 ANCHOR RODS SEE 8 S41-00 11" 11" CP UT - REMOVE BACKING BAR AFTER WELD IS COMPLETED 14"1 MAX. GROUT HOLE AT CONT'R OPTION
