An elevator rail connects directly to the wood rim beam per manufacturer specifications. A CS14 strap is placed within twelve inches on each side of the rim beam, wrapping around the rim and nailed to blocking as shown. The floor assembly features plywood sheathing with floor boundary nailing specified for a minimum of four feet along the joist, and posts at rails are installed per detail 11/S4.4.

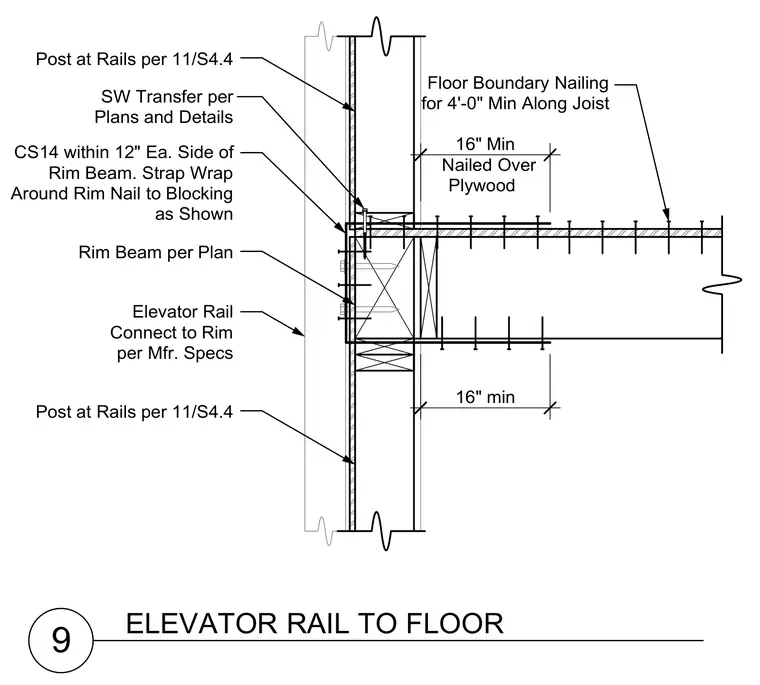

9 ELEVATOR RAIL TO FLOOR 16" Min Nailed Over Plywood 16" min Elevator Rail Connect to Rim per Mfr. Specs Rim Beam per Plan Floor Boundary Nailing for 4'-0" Min Along Joist SW Transfer per Plans and Details CS14 within 12" Ea. Side of Rim Beam. Strap Wrap Around Rim Nail to Blocking as Shown Post at Rails per 11/S4.4 Post at Rails per 11/S4.4
