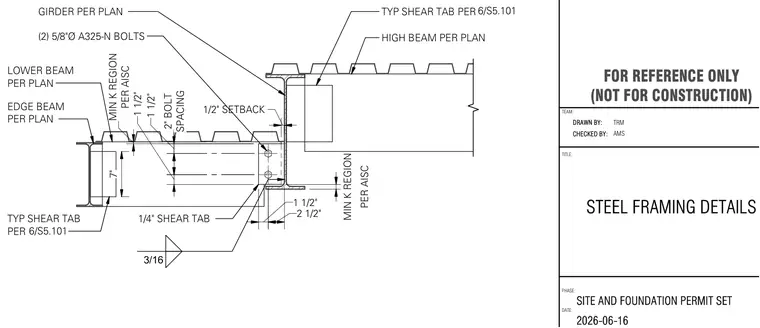

A high beam and a lower beam frame into a girder per plan at adjacent elevations using single plate shear tab connections. The 1/4-inch shear tab is welded to the girder web with a three-sixteenths fillet weld and features a one-half-inch setback. The lower beam web connects to the shear tab using two 5/8-inch diameter A325-N bolts with a 2-inch bolt spacing, centered vertically with a 7-inch dimension and positioned within the minimum k-region per AISC guidelines. An edge beam is shown adjacent to the lower framing condition, also utilizing a typical shear tab connection per details.
1/2" SETBACK 1 1/2" 1 1/2" SPACING 2" BOLT TYP SHEAR TAB PER 6/S5.101 HIGH BEAM PER PLAN 2 1/2" 1 1/2" 1/4" SHEAR TAB 3/16 TYP SHEAR TAB PER 6/S5.101 GIRDER PER PLAN PER AISC MIN K REGION (2) 5/8"Ø A325-N BOLTS LOWER BEAM PER PLAN EDGE BEAM PER PLAN PER AISC MIN K REGION 7" TITLE: DRAWN BY: CHECKED BY: TEAM: PHASE: DATE: FOR REFERENCE ONLY (NOT FOR CONSTRUCTION) 2026-06-16 STEEL FRAMING DETAILS TRM AMS SITE AND FOUNDATION PERMIT SET
