Structural · S-AEKBD

Trapeze Ceiling Support Detail

Materials

Elements

About this detail

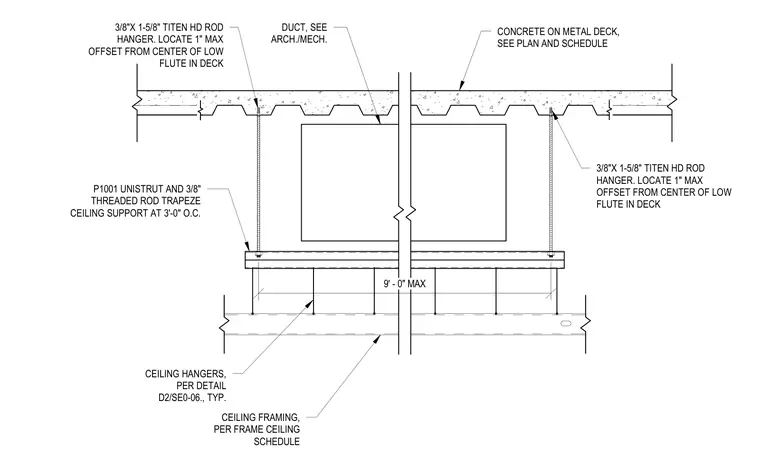

A concrete slab on metal deck supports a trapeze ceiling assembly hung by three-eighths-inch by one-and-five-eighths-inch Titen HD rod anchors located a maximum of one inch off the center of the low flute. Three-eighths-inch threaded rods drop down to support a P1001 Unistrut trapeze channel spaced at three feet on center. Ceiling hangers extend down from the Unistrut channel to connect with the ceiling framing below, accommodating mechanical ductwork routed between the structural deck and the suspended ceiling with a maximum nine-foot clearance.
