Concrete Foundation Wall and Column Footing Detail

Materials

Concrete

Elements

Columns Walls Floors / Slabs Arches Expansion / Control Joints Reinforcing

Connections

Rebar Splice / Development

About this detail

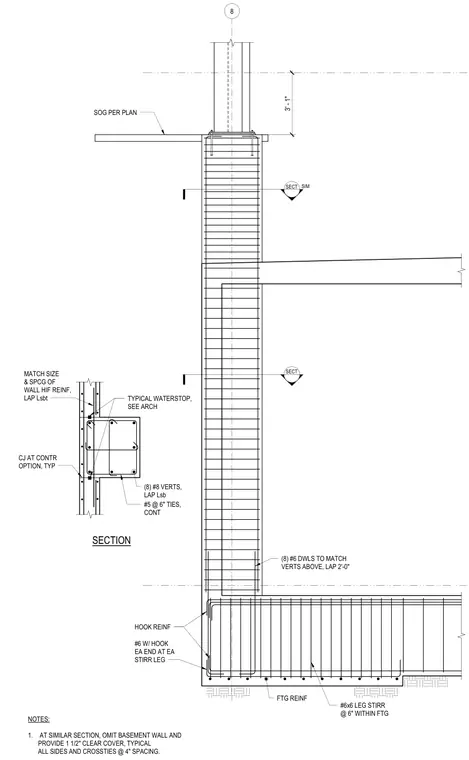

A reinforced concrete foundation wall connects to a concrete footing with hooked footing reinforcement. Eight number 8 vertical reinforcing bars extend continuously through the wall section, tied with continuous number 5 ties at six-inch spacing. A control joint with a waterstop is integrated into the wall assembly per architectural requirements. Eight number 6 dowels lap two feet with the vertical reinforcement above. The concrete slab on grade bears against the upper portion of the wall section.
