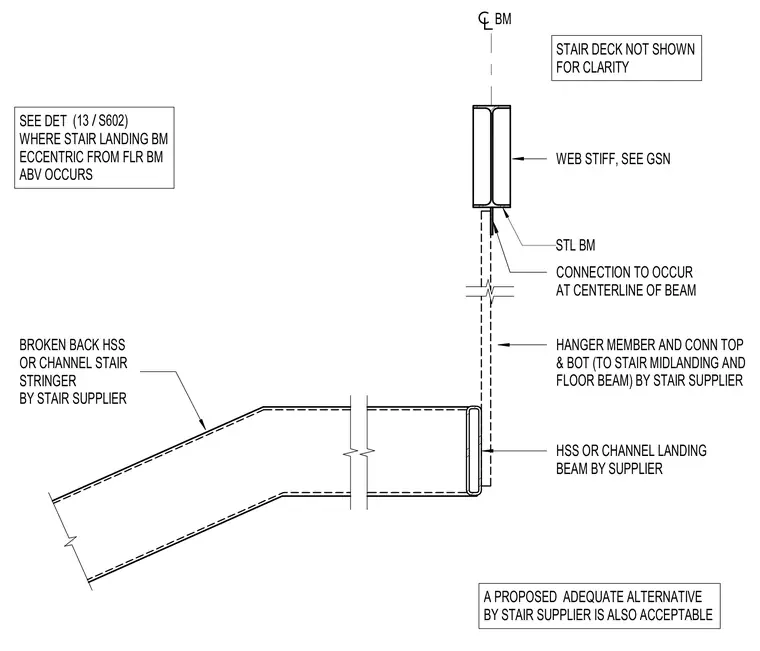

A structural steel floor beam receives a hanger member at its centerline, which connects top and bottom to a stair midlanding beam. The floor beam features a web stiffener per general structural notes. The stair midlanding uses an HSS or channel landing beam framing into a broken-back HSS or channel stair stringer, with all hanger and landing connections provided by the stair supplier. When the stair landing beam is eccentric from the floor beam above, a separate offset detail governs.
STL BM WEB STIFF, SEE GSN BROKEN BACK HSS OR CHANNEL STAIR STRINGER BY STAIR SUPPLIER BM HSS OR CHANNEL LANDING BEAM BY SUPPLIER HANGER MEMBER AND CONN TOP & BOT (TO STAIR MIDLANDING AND FLOOR BEAM) BY STAIR SUPPLIER CONNECTION TO OCCUR AT CENTERLINE OF BEAM SEE DET WHERE STAIR LANDING BM ECCENTRIC FROM FLR BM ABV OCCURS STAIR DECK NOT SHOWN FOR CLARITY A PROPOSED ADEQUATE ALTERNATIVE BY STAIR SUPPLIER IS ALSO ACCEPTABLE / (13 S602)
