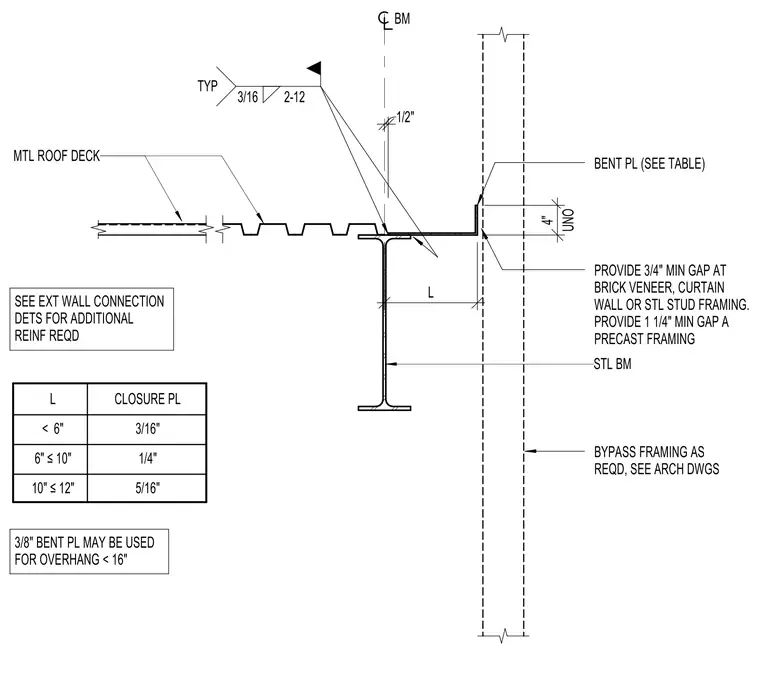

A closure plate assembly at a roof edge spans over a steel beam. A bent plate closure welded to the metal roof deck provides edge containment, with plate thickness varying based on the overhang dimension per the provided table. A three-sixteenths inch fillet weld secures the deck to the supporting steel beam with a typical two-inch spacing unless noted otherwise. Clearances of three-quarters inch are maintained at brick veneer, curtain wall, or steel stud framing, while precast framing requires a one-and-one-quarter inch minimum gap. Bypass framing is coordinated per architectural drawings.
SEE EXT WALL CONNECTION DETS FOR ADDITIONAL REINF REQD L BENT PL (SEE TABLE) < 6" 6" ≤ 10" 10" ≤ 12" CLOSURE PL 3/16" 1/4" 5/16" STL BM L 1/2" BM 3/8" BENT PL MAY BE USED FOR OVERHANG < 16" MTL ROOF DECK MTL ROOF DECK UNO 4" TYP 3/16 2-12 PROVIDE 3/4" MIN GAP AT BRICK VENEER, CURTAIN WALL OR STL STUD FRAMING. PROVIDE 1 1/4" MIN GAP A PRECAST FRAMING BYPASS FRAMING AS REQD, SEE ARCH DWGS
