A guide rail is mounted to a hollow structural section support using structural steel angles and manufacturer-specified rail clips. An L3-one-half by 3 by 3-eighths by 1-foot-6-inch angle or manufacturer-designed equivalent connects directly to the hollow structural section support. An L3 by 3 by 3-eighths by 1-foot-2-inch angle or manufacturer design connects the rail assembly with welds specified per manufacturer at each end. Rail clips secure the guide rail per manufacturer drawings.

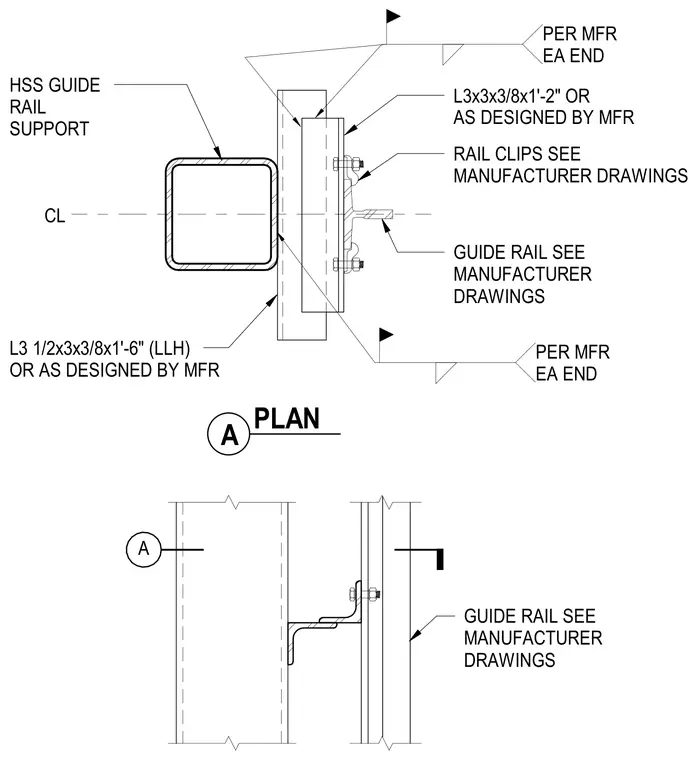

A PER MFR EA END PER MFR EA END HSS GUIDE RAIL SUPPORT L3x3x3/8x1'-2" OR AS DESIGNED BY MFR RAIL CLIPS SEE MANUFACTURER DRAWINGS GUIDE RAIL SEE MANUFACTURER DRAWINGS A PLAN GUIDE RAIL SEE MANUFACTURER DRAWINGS L3 1/2x3x3/8x1'-6" (LLH) OR AS DESIGNED BY MFR CL
