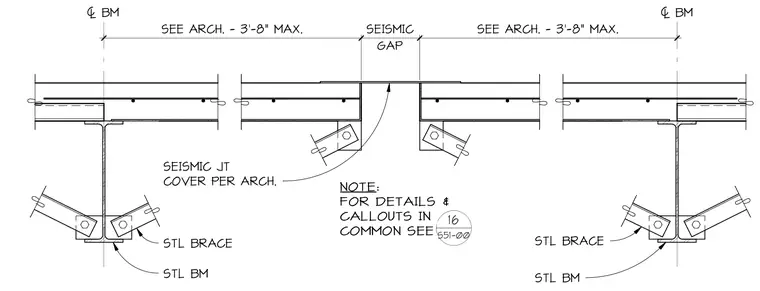

A seismic gap spans between structural steel beams with a joint cover detailed per architectural drawings. Steel braces connect to gusset plates on the steel beams using bolted connections. Dimensions indicate a maximum gap spacing coordinated with architectural requirements.
/ BM SEE ARCH. - 3'-8" MAX. GAP SEISMIC SEE ARCH. - 3'-8" MAX. / BM NOTE: FOR DETAILS & CALLOUTS IN COMMON SEE 16 S51-00 STL BM STL BRACE SEISMIC JT COVER PER ARCH. STL BM STL BRACE
