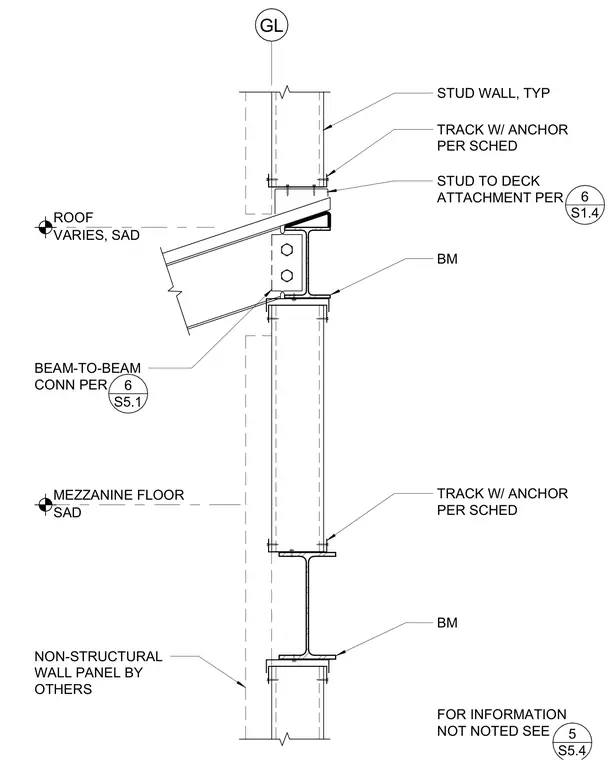

A wall section junction features steel framing members and stud walls. The top track connects with anchors sized per schedule, while stud-to-deck attachments follow specific sheet references. Beams integrate with the assembly through designated beam-to-beam connections. Non-structural wall panels are provided by others along the exterior face.
GL BM NON-STRUCTURAL WALL PANEL BY OTHERS SAD MEZZANINE FLOOR VARIES, SAD ROOF BM STUD WALL, TYP TRACK W/ ANCHOR PER SCHED STUD TO DECK ATTACHMENT PER FOR INFORMATION NOT NOTED SEE 5 S5.4 6 S1.4 BEAM-TO-BEAM CONN PER 6 S5.1 TRACK W/ ANCHOR PER SCHED
