A braced frame connection occurs at a steel column and beam intersection. A 1/2-inch thick gusset plate connects to the structural tee or brace member per elevation, with 1/4-inch fillet welds on near and far sides. The column size is determined per plan, while the beam connects via a Typical Type C1 connection using two bolts for W10 sections or three bolts for W12 sections. A 2-inch clearance is maintained between the beam flange and the gusset plate connection.

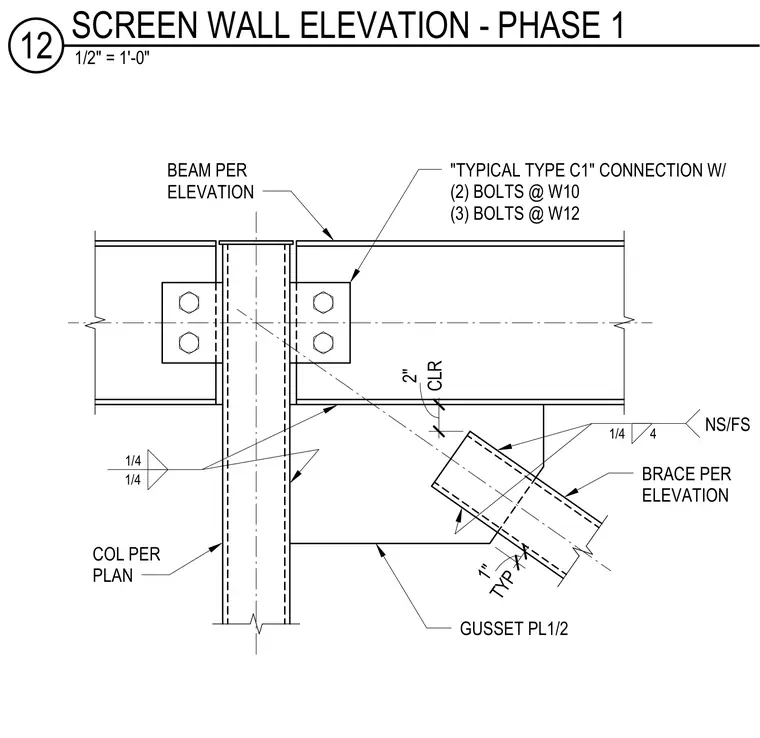

COL PER PLAN "TYPICAL TYPE C1" CONNECTION W/ (2) BOLTS @ W10 (3) BOLTS @ W12 1/4 1/4 NS/FS 4 1/4 GUSSET PL1/2 BRACE PER ELEVATION CLR 2" TYP 1" BEAM PER ELEVATION 1/2" = 1'-0" 12 SCREEN WALL ELEVATION - PHASE 1
