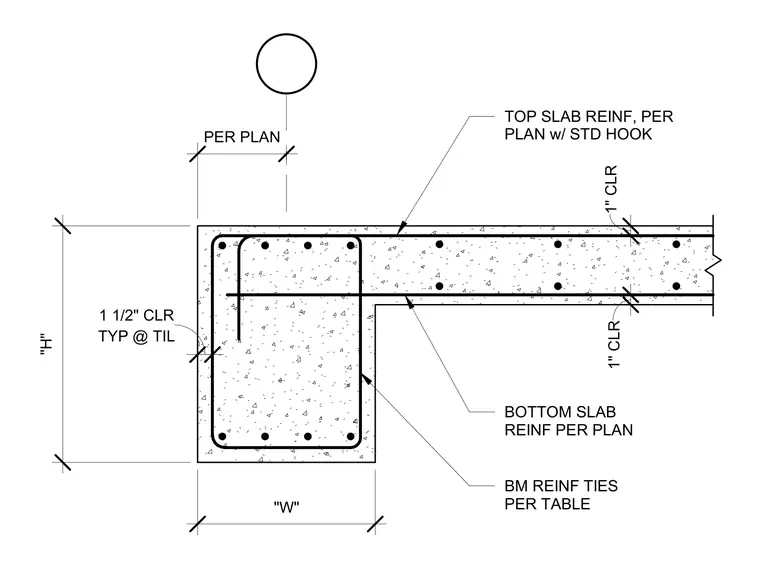

A reinforced concrete slab edge frames into a perimeter beam with variable width and height dimensions designated as W and H. The top slab reinforcement extends into the perimeter beam with a standard hook, maintaining a one-inch concrete clearance. The bottom slab reinforcement continues into the assembly, while the perimeter beam is detailed with closed ties spaced per table requirements and one and one-half inch typical concrete cover.
PER PLAN "H" "W" TOP SLAB REINF, PER PLAN w/ STD HOOK 1" CLR 1" CLR BOTTOM SLAB REINF PER PLAN BM REINF TIES PER TABLE TYP @ TIL 1 1/2" CLR
