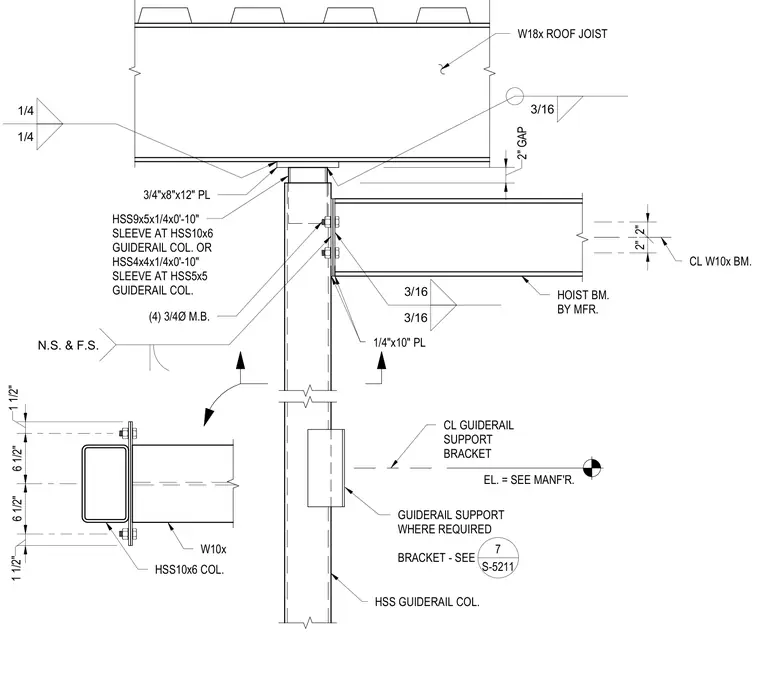

An elevator guide rail support post assembly connects an HSS guide rail column to a W18x roof joist and a W10x hoist beam. The connection utilizes a 3/4" x 8" x 12" plate welded to the top of the HSS column, with an HSS9x5 or HSS4x4 sleeve at the guiderail column as required. Four 3/4" diameter machine bolts connect the hoist beam to a 1/4" x 10" plate on the HSS10x6 column using near side and far side fillet welds. A guiderail support bracket is provided at the specified elevation per the manufacturer requirements, leaving a 2-inch gap between structural elements.
7 S-5211 1/4 1/4 W18x ROOF JOIST 3/4"x8"x12" PL HSS9x5x1/4x0'-10" SLEEVE AT HSS10x6 GUIDERAIL COL. OR HSS4x4x1/4x0'-10" SLEEVE AT HSS5x5 GUIDERAIL COL. HSS GUIDERAIL COL. GUIDERAIL SUPPORT WHERE REQUIRED BRACKET - SEE EL. = SEE MANF'R. CL GUIDERAIL SUPPORT BRACKET 2" GAP 3/16 2" 2" 3/16 3/16 HOIST BM. BY MFR. 1/4"x10" PL CL W10x BM. N.S. & F.S. 1 1/2" 6 1/2" 6 1/2" 1 1/2" W10x HSS10x6 COL. (4) 3/4Ø M.B.
