Cold-formed steel framing extends up to a continuous 362S200-54 beam at the top, capped with a 362T200-54 track. The track is secured to the continuous beam using number 12 Teks screws on each side at twenty-four inches on center maximum. Vertical 362S162-33 studs are spaced at twenty-four inches on center maximum and fastened to the track with number 12 Teks screws on each side. The base of the assembly utilizes a 362T162-54 track anchored with one-quarter inch diameter by one-and-seven-eighths inch Titen HD screws at each stud.

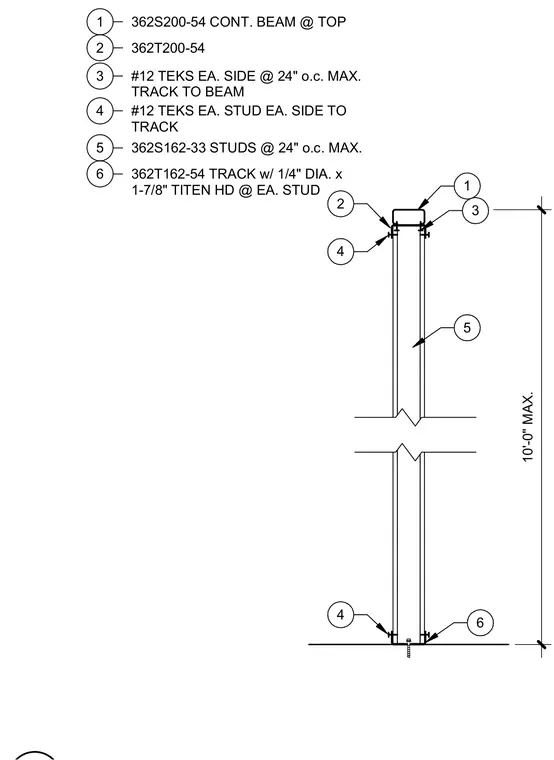

1 362S200-54 CONT. BEAM @ TOP 1 2 362T200-54 3 #12 TEKS EA. SIDE @ 24" o.c. MAX. TRACK TO BEAM 4 #12 TEKS EA. STUD EA. SIDE TO TRACK 5 362S162-33 STUDS @ 24" o.c. MAX. 6 362T162-54 TRACK w/ 1/4" DIA. x 1-7/8" TITEN HD @ EA. STUD 2 3 4 5 4 6 10'-0" MAX.
