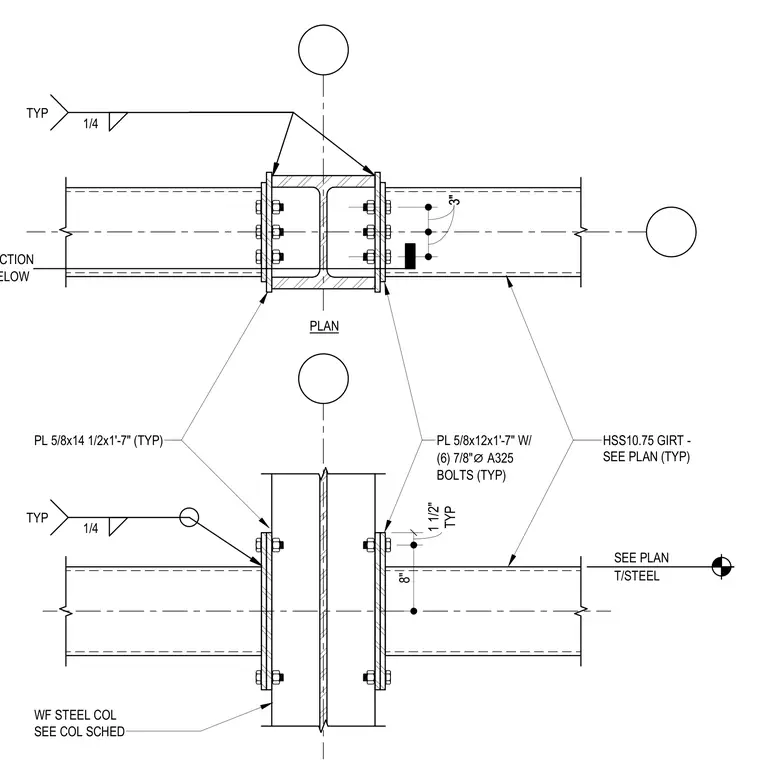

A girt moment connection frames into a wide-flange steel column. Hollow structural section girts connect to the column flanges using five-eighths by twelve-inch by one-foot seven-inch plates secured with six seven-eighths-inch diameter A325 bolts. Additional connection plates measuring five-eighths by fourteen and one-half inches by one-foot seven-inch are welded with quarter-inch fillet welds. The wide-flange steel column is sized per the column schedule.
SECTION BELOW 1/4 TYP HSS10.75 GIRT - SEE PLAN (TYP) PLAN 8" TYP 1 1/2" WF STEEL COL SEE COL SCHED PL 5/8x12x1'-7" W/ (6) 7/8" ⌀ A325 BOLTS (TYP) PL 5/8x14 1/2x1'-7" (TYP) 3"3" 1/4 TYP T/STEEL SEE PLAN
