Horizontal steel bridging is furnished in twenty-foot or twenty-five-foot lengths and cut to suit in the field with a minimum lap of two inches. All connections are field welded. Bridging size and frequency are determined by the joist manufacturer and submitted for engineer of record review.

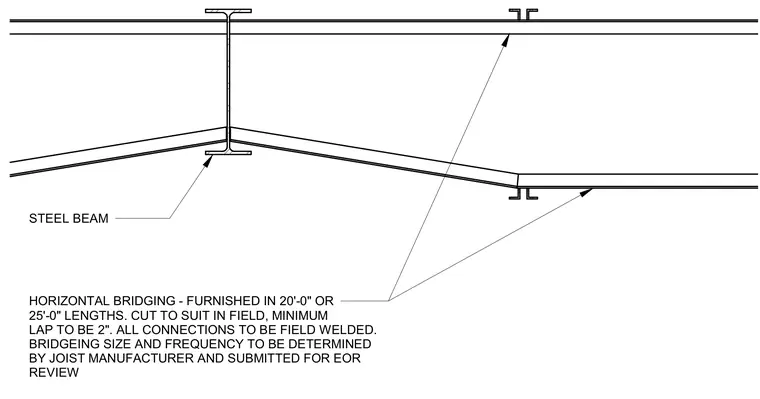

STEEL BEAM HORIZONTAL BRIDGING - FURNISHED IN 20'-0" OR 25'-0" LENGTHS. CUT TO SUIT IN FIELD, MINIMUM LAP TO BE 2". ALL CONNECTIONS TO BE FIELD WELDED. BRIDGEING SIZE AND FREQUENCY TO BE DETERMINED BY JOIST MANUFACTURER AND SUBMITTED FOR EOR REVIEW
