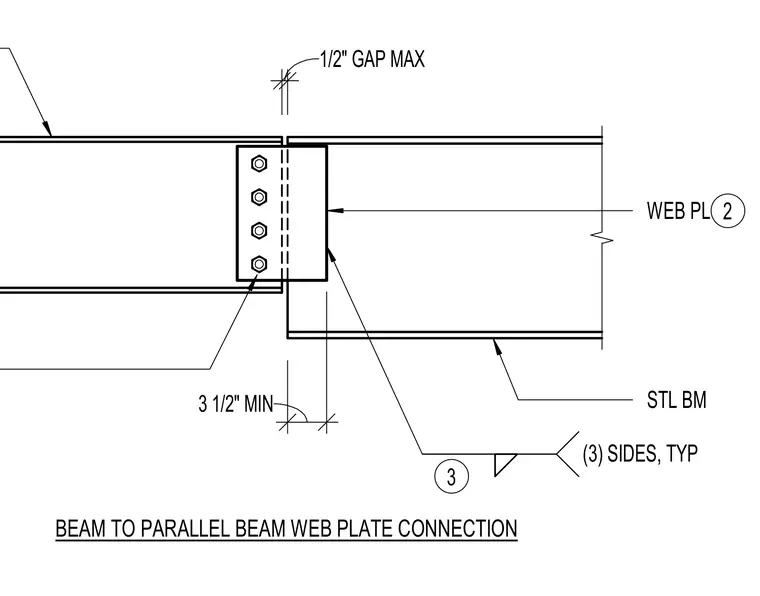

A steel beam connects to a parallel supporting steel beam using a web plate welded on three sides, typically. A maximum gap of one-half inch is maintained between the framing members, with a three-and-a-half-inch minimum dimension provided at the connection layout. Structural bolts secure the supported beam web to the connecting web plate.
BEAM TO PARALLEL BEAM WEB PLATE CONNECTION WEB PL STL BM 2 3 3 1/2" MIN 1/2" GAP MAX (3) SIDES, TYP
