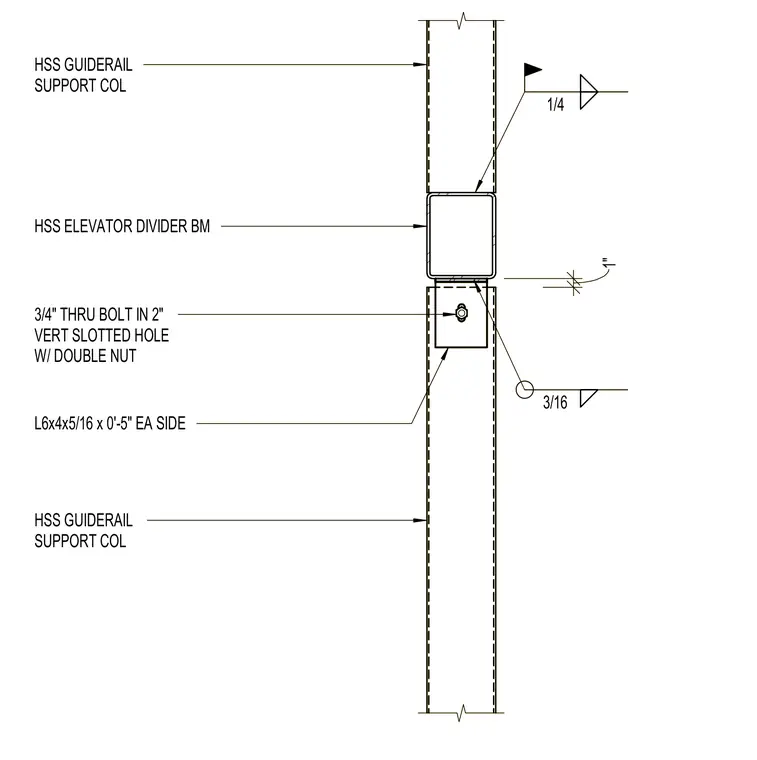

An HSS elevator divider beam connects to hollow structural section guide rail support columns using L6x4x5/16 by five-inch angles placed on each side. The connection is secured with three-quarter-inch through bolts installed in two-inch vertical slotted holes with double nuts to allow vertical adjustment. A one-inch clearance is maintained between the structural members. Fillet welds of quarter-inch and three-sixteenth-inch sizes join the connection angles and framing elements as indicated.
L6x4x5/16 x 0'-5" EA SIDE HSS GUIDERAIL SUPPORT COL 3/4" THRU BOLT IN 2" VERT SLOTTED HOLE W/ DOUBLE NUT 1" HSS ELEVATOR DIVIDER BM HSS GUIDERAIL SUPPORT COL 1/4 3/16 L6x4x5/16 x 0'-5" EA SIDE HSS GUIDERAIL SUPPORT COL 3/4" THRU BOLT IN 2" VERT SLOTTED HOLE W/ DOUBLE NUT 1" HSS ELEVATOR DIVIDER BM HSS GUIDERAIL SUPPORT COL 1/4 3/16
