Structural · S-ACW6Y

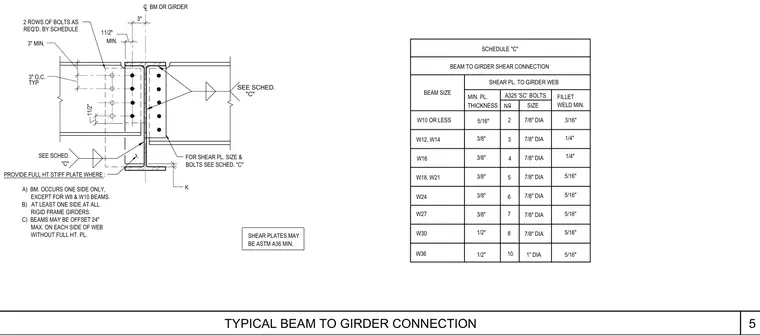

Typical Beam to Girder Connection

Materials

Steel

Elements

Beams Connections / Plates

Connections

Moment Connection Welded Connection Bolted Connection

About this detail

A standard beam-to-girder shear connection features a shear plate welded to the supporting girder web and bolted to the supported beam web. Schedule C specifies minimum plate thicknesses, ASTM A325 slip-critical bolt diameters, and minimum fillet weld sizes corresponding to various beam sizes from W10 or less up to W36. Notes indicate requirements for full-height stiffener plates based on framing conditions such as single-side beam connections, rigid frame girders, and offset beams. Two rows of bolts are provided as required by the schedule with standard edge distances and spacings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
