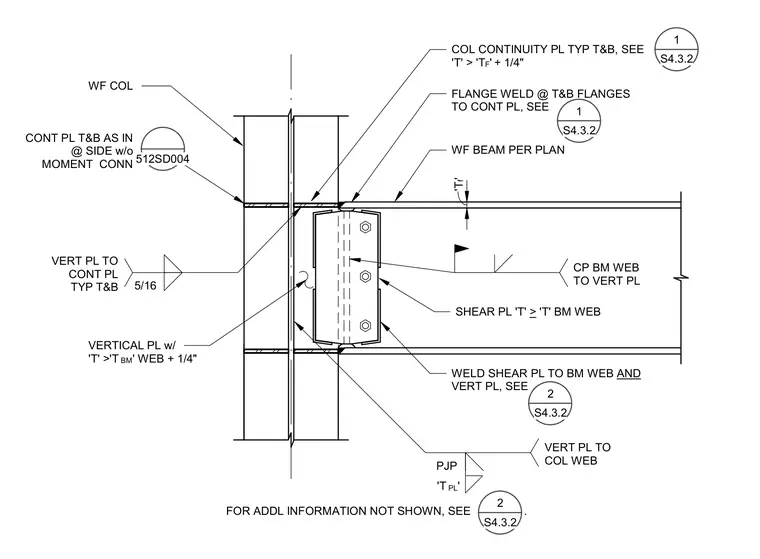

A wide-flange beam frames into a wide-flange column utilizing a vertical plate welded to the column web with a partial-joint-penetration weld. A shear plate connects the beam web to the vertical plate using a complete-joint-penetration weld and field bolts. Top and bottom continuity plates match the column flanges, with 1/4-inch fillet welds attaching the flange plates to the continuity plates. The vertical plate is welded to the continuity plates with 5/16-inch fillet welds typically at top and bottom. Column continuity plates are installed on sides without moment connections per structural notes.
WF BEAM PER PLAN 'T PL ' 'T f ' FOR ADDL INFORMATION NOT SHOWN, SEE . SHEAR PL 'T' > 'T' BM WEB WELD SHEAR PL TO BM WEB AND VERT PL, SEE COL CONTINUITY PL TYP T&B, SEE 'T' > 'T F ' + 1/4" FLANGE WELD @ T&B FLANGES TO CONT PL, SEE WF COL CONT PL T&B AS IN @ SIDE w/o MOMENT CONN VERTICAL PL w/ 'T' >'T BM ' WEB + 1/4" 512SD004 1 S4.3.2 1 S4.3.2 2 S4.3.2 2 S4.3.2 CP BM WEB TO VERT PL PJP VERT PL TO COL WEB 5/16 VERT PL TO CONT PL TYP T&B
