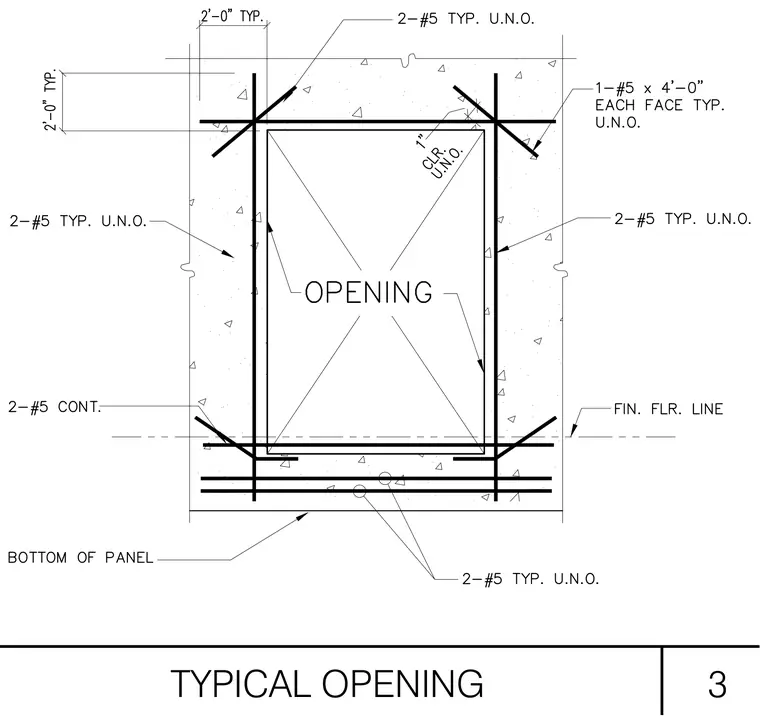

This concrete wall opening detail requires two number 5 reinforcing bars placed typically unless otherwise noted at each corner diagonal, maintaining a one-inch clear spacing. Additional reinforcement includes one number 5 by four-foot bar on each face typical unless otherwise noted, two number 5 bars typically unless otherwise noted at the vertical jambs, and two continuous number 5 bars spanning across the base above the finished floor line. Two number 5 bars are placed typically unless otherwise noted below the opening near the bottom of the panel.
