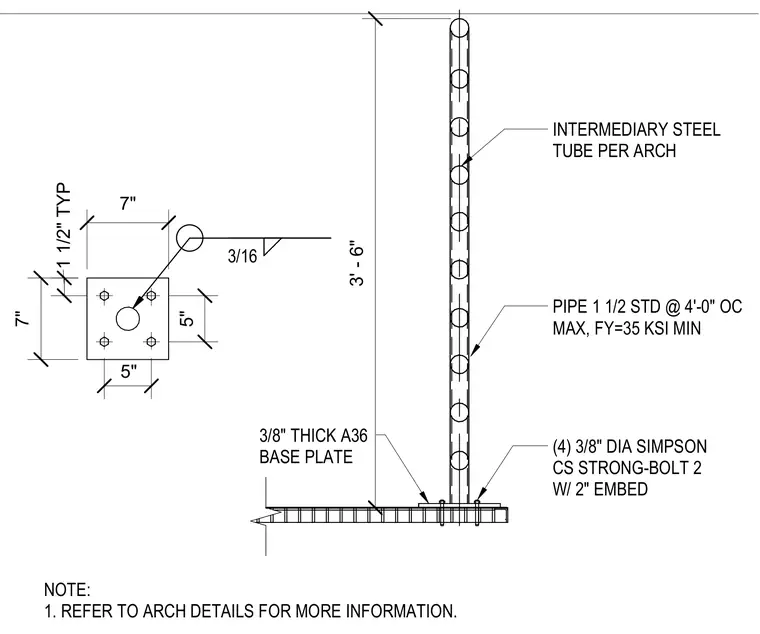

A 1-1/2 inch standard steel pipe post with a minimum yield strength of 35 ksi is welded to a 3/8-inch thick A36 base plate using a 3/16-inch fillet weld. The square base plate measures 7 inches by 7 inches with a 5-inch bolt spacing and 1-1/2 inch typical edge distances. The assembly is anchored to the substrate using four 3/8-inch diameter Simpson CS Strong-Bolt 2 expansion anchors with a 2-inch embedment depth. Intermediary steel tubes are provided per architectural details, and posts are spaced at a maximum of 4 feet on center.
3' - 6" 7" 7" 1 1/2" TYP 5" 3/16 5" PIPE 1 1/2 STD @ 4'-0" OC MAX, FY=35 KSI MIN 3/8" THICK A36 BASE PLATE NOTE: 1. REFER TO ARCH DETAILS FOR MORE INFORMATION. INTERMEDIARY STEEL TUBE PER ARCH (4) 3/8" DIA SIMPSON CS STRONG-BOLT 2 W/ 2" EMBED
