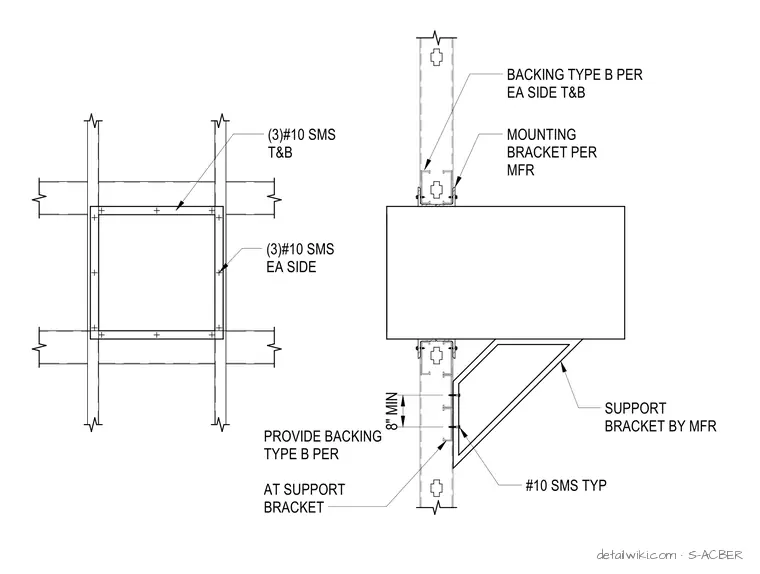

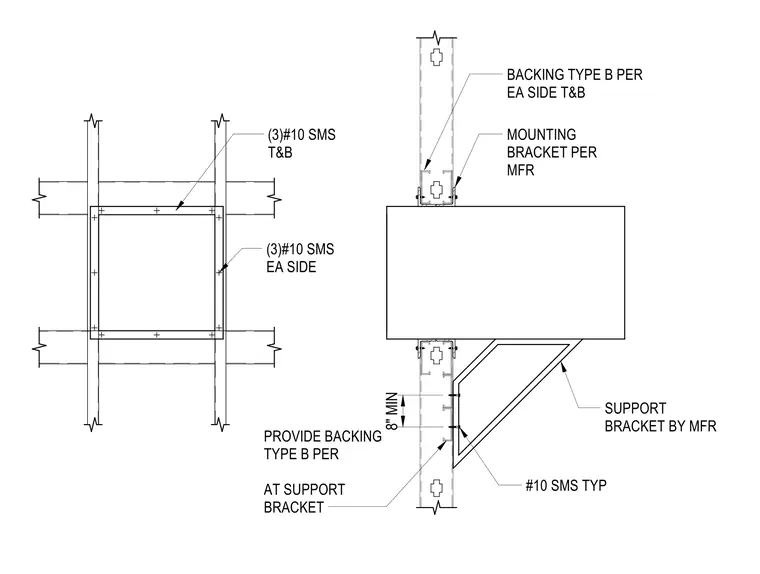

S-ACBER — Pass Thru Chamber Anchorage Detail

Structural · S-ACBER

Pass Thru Chamber Anchorage Detail

Scale: SCALE: 3/4" = 1'-0"
Units: imperial
Discipline: Structural

Materials

Elements

Anchors / Embeds Connections / Plates Partitions Walls

Connections

Base Plate / Anchorage

Text on the drawing

BACKING TYPE B PER EA SIDE T&B (3)#10 SMS T&B (3)#10 SMS EA SIDE MOUNTING BRACKET PER MFR SUPPORT BRACKET BY MFR #10 SMS TYP PROVIDE BACKING TYPE B PER AT SUPPORT BRACKET 8" MIN
