Structural · S-ACBDQ

Roof Offset Steel Beam Connection Detail

Materials

Elements

Columns Beams Roofs Decks Connections / Plates

About this detail

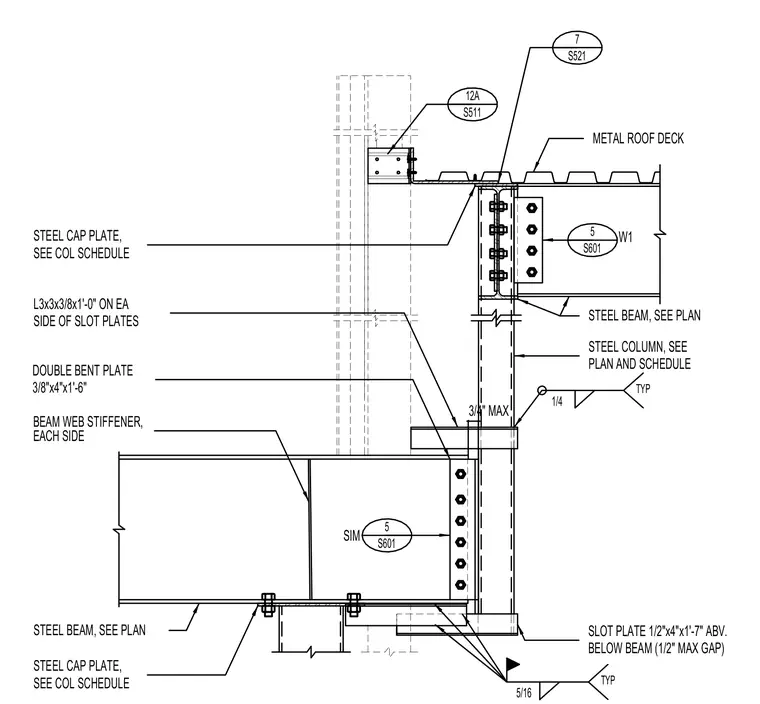

A steel roof beam frames into a steel column with a slotted plate measuring 1/2 inch by 4 inches by 1 foot 7 inches positioned above and below the beam with a 1/2 inch maximum gap. Double bent plates measuring 3/8 inch by 4 inches by 1 foot 6 inches connect alongside angles measuring 3 x 3 x 3/8 inches by 1 foot 0 inches on each side of the slot plates. Beam web stiffeners are welded to each side of the beam with a typical quarter-inch fillet weld, while five-sixteenth-inch typical welds secure the plates. A steel cap plate sized per the column schedule caps the support, and a metal roof deck bears above.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
