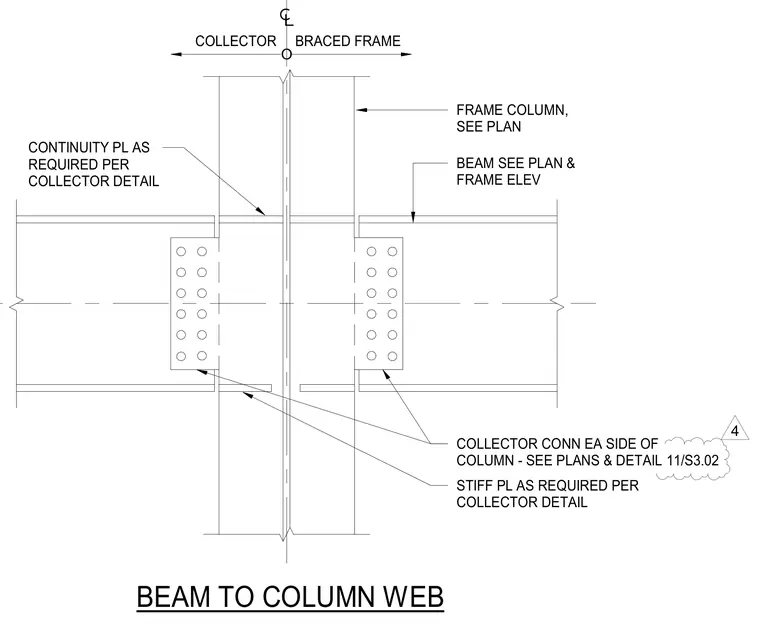

A collector beam connects to each side of a structural frame column web using a bolted shear connection sized per plan and frame elevation. Continuity plates are provided across the column web as required per the collector detail. Stiffener plates are also included at the beam-to-column web intersection as specified by the collector detail reference 11/S3.02.
BEAM TO COLUMN WEB COLLECTOR CONN EA SIDE OF COLUMN - SEE PLANS & DETAIL BEAM SEE PLAN & FRAME ELEV FRAME COLUMN, SEE PLAN CONTINUITY PL AS REQUIRED PER COLLECTOR DETAIL O BRACED FRAME COLLECTOR STIFF PL AS REQUIRED PER COLLECTOR DETAIL 11/S3.02 4
