A round or square opening up to thirteen inches in diameter is cut through a single low flute of a three-inch Type N roof deck. The opening is reinforced with L2x2x3/16 steel angles attached to each low flute on both sides with two number ten self-drilling screws. These reinforcing angles extend a minimum of two flutes beyond the edges of the opening.

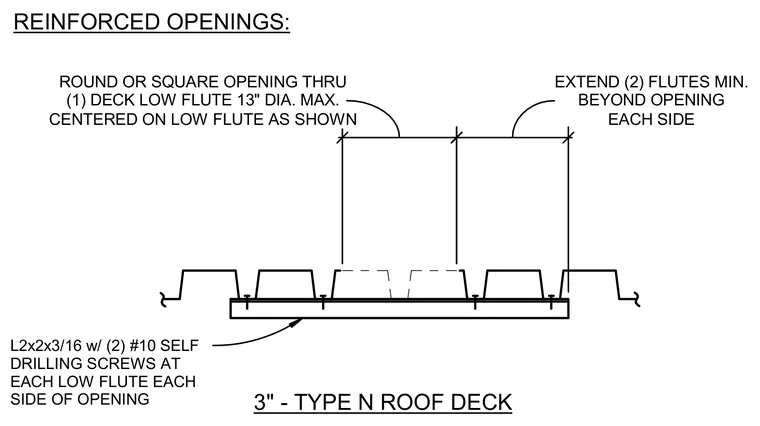

REINFORCED OPENINGS: 3" - TYPE N ROOF DECK CENTERED ON LOW FLUTE AS SHOWN ROUND OR SQUARE OPENING THRU (1) DECK LOW FLUTE 13" DIA. MAX. EACH SIDE EXTEND (2) FLUTES MIN. BEYOND OPENING L2x2x3/16 w/ (2) #10 SELF DRILLING SCREWS AT EACH LOW FLUTE EACH SIDE OF OPENING
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
