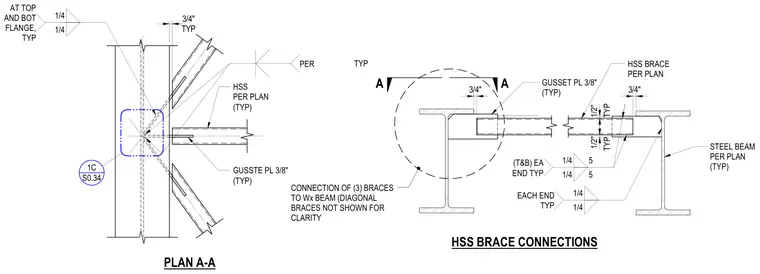

Three hollow structural section braces frame into a wide-flange steel beam using three-eighths-inch thick gusset plates. The gusset plates connect to the top and bottom flanges of the beam with one-quarter-inch fillet welds on both the top and bottom. A three-quarter-inch clearance gap is maintained between the brace ends and the connection assembly. The hollow structural section braces are sized per plan and welded at each end.
3/4" 3/4" STEEL BEAM PER PLAN (TYP) GUSSET PL 3/8" (TYP) 1/4 1/4 EACH END TYP 1/4 5 1/4 5 (T&B) EA END TYP HSS BRACE PER PLAN A A CONNECTION OF (3) BRACES TO Wx BEAM (DIAGONAL BRACES NOT SHOWN FOR CLARITY TYP 3/4" GUSSTE PL 3/8" (TYP) PLAN A-A 1/4 1/4 AT TOP AND BOT FLANGE, TYP HSS PER PLAN (TYP) HSS BRACE CONNECTIONS 1/2" 1/2" TYP TYP PER TYP S0.34 1C
