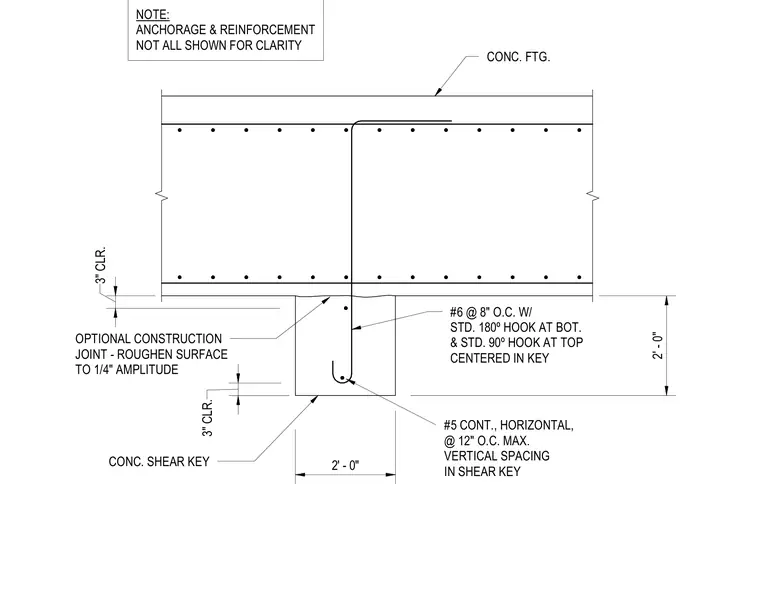

An optional construction joint features a roughened surface to one-quarter-inch amplitude between the concrete footing and the two-foot-wide by two-foot-deep concrete shear key. The shear key is reinforced with number five continuous horizontal bars spaced at a maximum of twelve inches on center vertically and number six vertical bars spaced at eight inches on center. The vertical bars feature a standard one-hundred-eighty-degree hook at the bottom and a standard ninety-degree hook at the top, centered within the key. Three inches of concrete clear cover is provided to the reinforcement.
NOTE: ANCHORAGE & REINFORCEMENT NOT ALL SHOWN FOR CLARITY CONC. FTG. 3" CLR. OPTIONAL CONSTRUCTION JOINT - ROUGHEN SURFACE TO 1/4" AMPLITUDE CONC. SHEAR KEY 2' - 0" #5 CONT., HORIZONTAL, @ 12" O.C. MAX. VERTICAL SPACING IN SHEAR KEY #6 @ 8" O.C. W/ STD. 180º HOOK AT BOT. & STD. 90º HOOK AT TOP CENTERED IN KEY 2' - 0" 3" CLR.
