Multi-tiered trapeze support assemblies are constructed using Unistrut P1000 channels and continuous threaded rods supporting Unistrut channels or pipe clevises. Maximum dimensional constraints restrict hanger spacing and offset dimensions, including four-inch maximum end distances and variable dimension 'B' spans along the vertical drop. Multi-tiered trapeze systems require additional stiffening only when cable bracing is implemented, referencing structural sheet 8/S790.

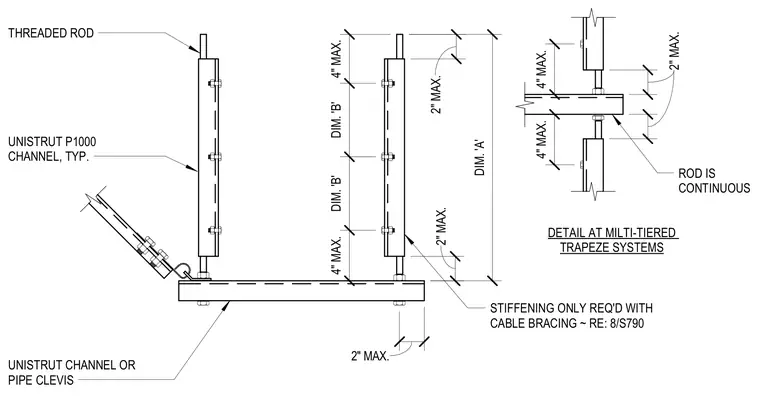

THREADED ROD UNISTRUT P1000 CHANNEL, TYP. UNISTRUT CHANNEL OR PIPE CLEVIS 4" MAX. DIM. 'B' DIM. 'B' 4" MAX. 2" MAX. DIM. 'A' 2" MAX. 4" MAX. 4" MAX. 2" MAX. 2" MAX. ROD IS CONTINUOUS 2" MAX. DETAIL AT MILTI-TIERED TRAPEZE SYSTEMS STIFFENING ONLY REQ'D WITH CABLE BRACING ~ RE: 8/S790
