A structural steel beam supports a metal roof deck with buckling-restrained braces connected via gusset plates. The gusset and attachment are designed by the BRB supplier. Additional web stiffeners measuring one-half inch thick are welded to each side of the beam web using five-sixteenth-inch fillet welds as required by the BRB supplier.

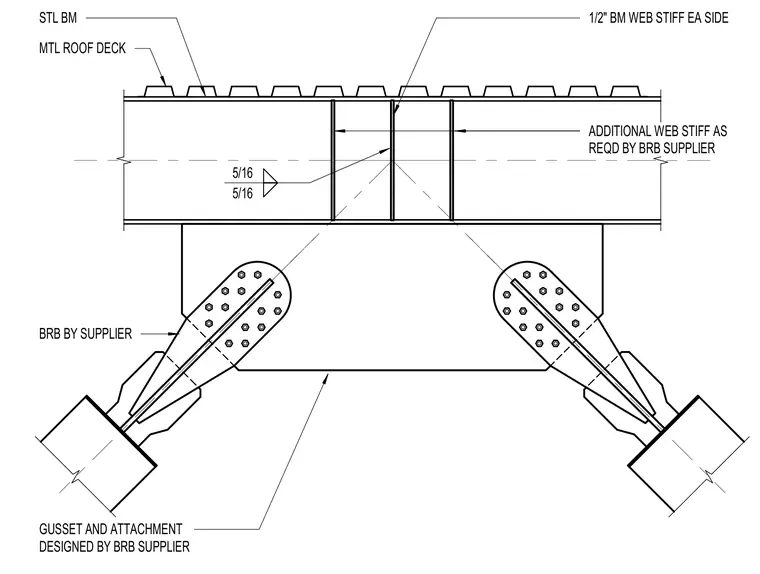

GUSSET AND ATTACHMENT DESIGNED BY BRB SUPPLIER BRB BY SUPPLIER STL BM MTL ROOF DECK ADDITIONAL WEB STIFF AS REQD BY BRB SUPPLIER 1/2" BM WEB STIFF EA SIDE 5/16 5/16
