A wide flange beam connects to a new or existing wide flange or hollow structural section column using a bolted shear tab welded to the support. The connection features a plate of thickness t welded to the column with fillet welds of size F and bolted to the supported beam web with N bolts. Standard edge distances and bolt spacings include one and one-half inch typical vertical spacing and specific minimum clearances of one-half inch, two inches, and three inches.

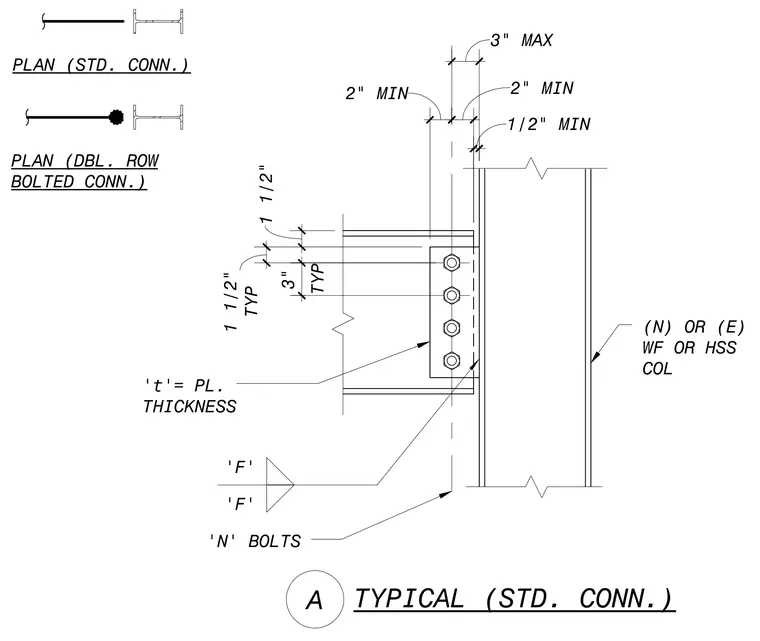

(N) OR (E) WF OR HSS COL 3" MAX 1/2" MIN 2" MIN 2" MIN 'N' BOLTS 1 1/2" TYP 3" 't'= PL. THICKNESS 'F' 'F' A TYPICAL (STD. CONN.) PLAN (STD. CONN.) PLAN (DBL. ROW BOLTED CONN.) TYP 1 1/2"
