Structural · S-ABVY2

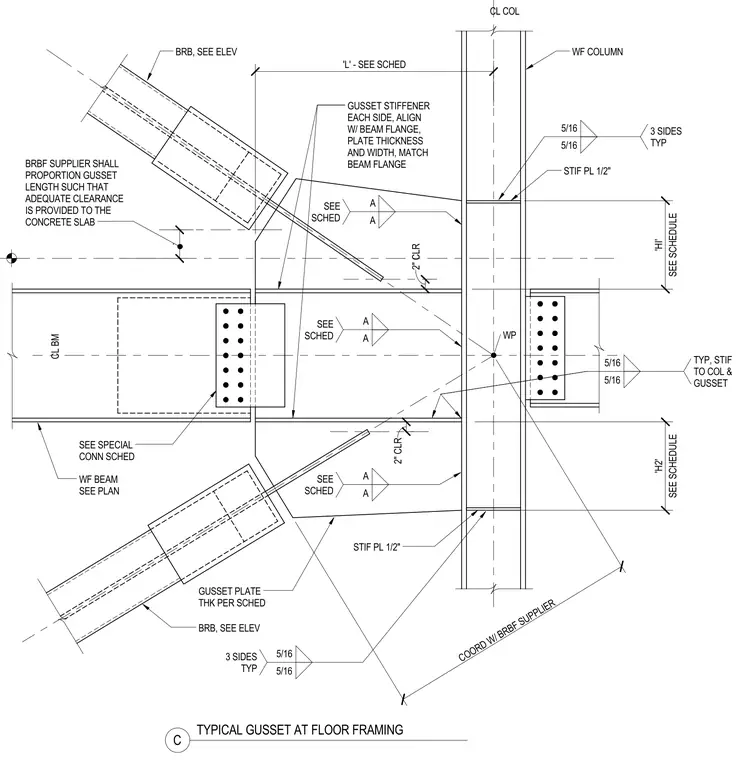

Typical Gusset At Floor Framing

Materials

Concrete Steel

Elements

Columns Beams Floors / Slabs Connections / Plates

Connections

Braced Frame Connection Gusset Plate

About this detail

A buckling-restrained brace connects at a wide-flange column and wide-flange beam intersection. The gusset plate thickness is determined per the schedule, featuring half-inch gusset stiffeners on each side aligned with the beam flange. Fillet welds of five-sixteenths inch are specified on three sides typically for stiffener-to-column and gusset connections. The buckling-restrained brace supplier must proportion the gusset length to maintain a two-inch clearance to the concrete slab.
