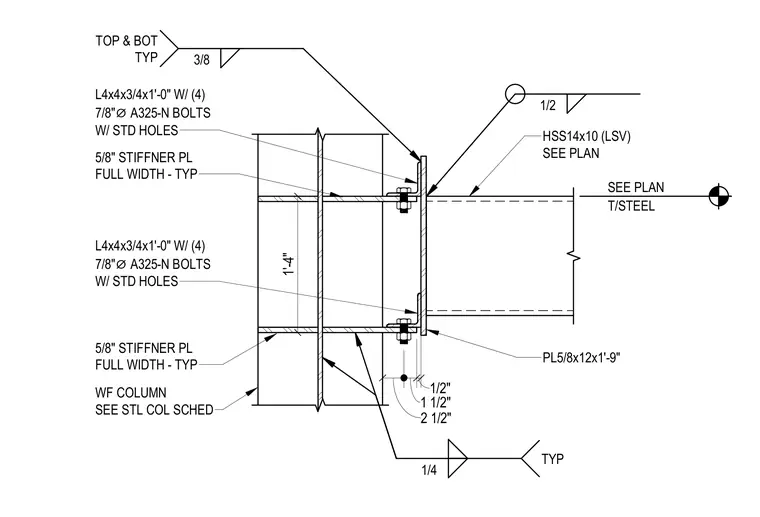

An HSS14x10 torsion member connects to a wide-flange column using a vertical plate welded to the end of the hollow structural section with a half-inch fillet weld. Top and bottom horizontal connection angles measuring 4x4x3/4 by one foot long bolt the plate to the column flanges using four seven-eighths inch diameter A325-N bolts with standard holes. Five-eighths inch full-width stiffener plates weld inside the column flanges aligned with the connection angles using three-eighths inch welds at the top and bottom. Additional quarter-inch typical fillet welds secure the internal stiffeners to the column web and flanges.
2 1/2" 1 1/2" 1/2" T/STEEL SEE PLAN 1/2 PL5/8x12x1'-9" 1/4 TYP HSS14x10 (LSV) SEE PLAN 3/8 TOP & BOT TYP L4x4x3/4x1'-0" W/ (4) 7/8" ⌀ A325-N BOLTS W/ STD HOLES 5/8" STIFFNER PL FULL WIDTH - TYP L4x4x3/4x1'-0" W/ (4) 7/8" ⌀ A325-N BOLTS W/ STD HOLES 5/8" STIFFNER PL FULL WIDTH - TYP WF COLUMN SEE STL COL SCHED 1'-4"
