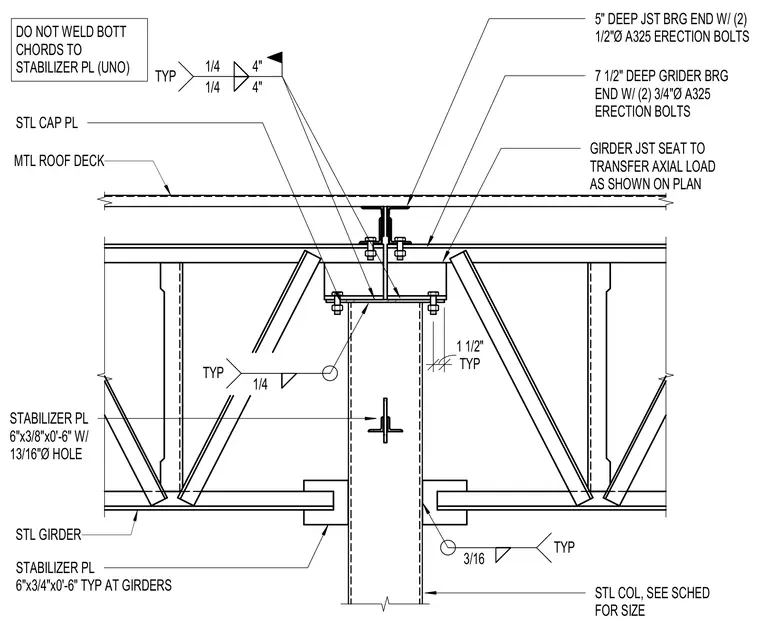

An open-web steel joist and steel girder bear upon a steel column topped with a steel cap plate. The joist bearing end features a five-inch deep seat secured with two half-inch diameter ASTM A325 erection bolts, while the girder bearing end has a seven-and-a-half inch deep seat secured with two three-quarter-inch diameter ASTM A325 erection bolts. Stabilizer plates measuring six inches by three-eighths of an inch by six inches with a thirteen-sixteenths-inch diameter hole are provided, along with six-inch by three-quarter-inch by six-inch typical stabilizer plates at the girders. The bottom chords are left unwelded to the stabilizer plate unless noted otherwise, and fillet welds of one-quarter inch and three-sixteenths inch sizes tie the connection elements together. The girder joist seat transfers axial load as shown on plan, and the steel column size is verified per the structural schedule.
STL CAP PL DO NOT WELD BOTT CHORDS TO STABILIZER PL (UNO) MTL ROOF DECK STL GIRDER STABILIZER PL 6"x3/4"x0'-6" TYP AT GIRDERS STL COL, SEE SCHED FOR SIZE TYP 1 1/2" STABILIZER PL 6"x3/8"x0'-6" W/ 13/16"Ø HOLE 7 1/2" DEEP GRIDER BRG END W/ (2) 3/4"Ø A325 ERECTION BOLTS 5" DEEP JST BRG END W/ (2) 1/2"Ø A325 ERECTION BOLTS GIRDER JST SEAT TO TRANSFER AXIAL LOAD AS SHOWN ON PLAN 3/16 TYP 1/4 1/4 4" 4" TYP 1/4 TYP
